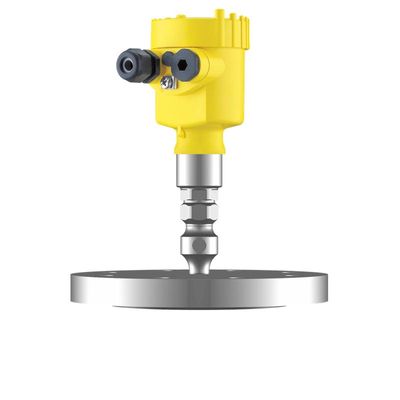

VEGABAR - Model 81 -Pressure Transmitter with Chemical Seal
Application area: Reliable measurement of highly corrosive and hot media. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement. The VEGABAR 81 is a pressure transmitter with chemical seal for pressure and level measurement. The chemical seal systems of VEGABAR 81 adapted to the process, ensure a reliable measurement even with highly corrosive and hot products. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.
- Simple adaptation thanks to verious configuration options
- Reliable measurement with temperatures up to 400 °C
- Reliable measurement independent of foam generation or tank installations
Pressure transmitter with chemical seal for hot and chemically aggressive media
The pressure transmitter VEGABAR 81 with chemical seal system demonstrates its capability especially in high temperatures and aggressive media. A wide range of diaphragm materials and coatings make this pressure transmitter an essential instrument across many sectors, particularly in the chemical and petrochemical industries.
The pressure transmitter with chemical seal delivers reliable measurement data for feedback control systems or protective equipment, e.g. for
- continuous monitoring of process pressure in reactors
- exhaust pressure of flue gas, e.g. in waste incineration
- pipeline pressure in dairies
- steam pressure control in steam drums
- pressure monitoring in LNG tanks
- Measuring range - Distance: - [Meter-Foot]
- Measuring range - Pressure: -1 ... 1000 bar ;Bar - kPa - psi]
- Process temperature: -90...400°C [°C-°F]
- Process pressure: -1 ... 1000 bar [Bar - kPa - psi]
- Accuracy: 0.2%
- Materials, wetted parts:
- Alloy C22 (2.4602)
- Alloy 400 (2.4360)
- Tantalum
- Alloy C276 (2.4819)
- Duplex (1.4462)
- Titanium Grade 2 (3.7035)
- 1.4435
- 316/316L
- Titanium Grade 7 (3.7235)
- Threaded connection: ≥ G½, ≥ ½ NPT
- Flange connection: ≥ DN25, ≥ 1"
- Hygenic fittings:
- Clamp £ 1" - DIN32676, IS02852
- Slotted nut*1tt",*DN40-DIN 11851
- hygienic fitting with tension flange DN32
- hygienic fitting F40 with compression nut
- Hygienice flange connection £ DN50 DIN11864-2
- Hygienic fittings 2 DN40 - DIN11864-1 -A
- Seal material: no media contact
- Housing material:
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- Protection rating:
- IP66/IP68(0,2bar>
- IP66/IP67
- IP66/IP68(1 bar)
- IP66/IP68(25bar)
- IP69K
- Output:
- Profibus PA
- Foundation Fieldbus
- 4... 20 mA
- 4 ... 20 mA/HART - two-wire
- Modbus
- Secondary electronics for electronic differential pressure
- Ambient temperature: -40... 80 °C
Approvals
- Scope:
- ATEX / Europe
- CSA/Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC/worldwide
- INMETRO/Brazil
- CCOE/India
- CSA/USA and Canada
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Foodstuffs/Pharma:
- 3A
- EHEDG
- FDA
- EG 1935/2004
- Ship approval:
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- Overfill protection:
- WHG
- VLAREM II
- SIL qualification: SIL2
Display & adjustment
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- H ART-Co m muni cato r
- Software (e. g. AMS™. PDM)
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
