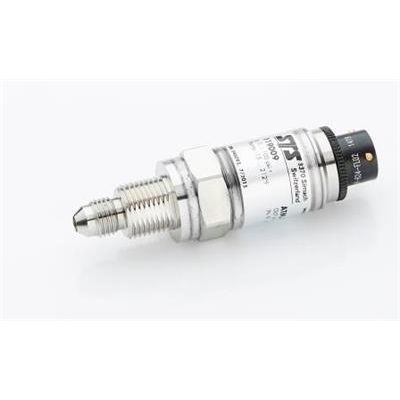

STS - Model ATM.1ST/IS -Pressure Transmitter with FM and FMc Certification
Pressure measuring range: 100 mbar … 690 bar. Accuracy: ≤ ± 0.10 / 0.05 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. Total Error Band: ≤ ± 0.30 %FS (0…70 °C). Materials: Stainless steel, Titanium.
Most popular related searches
- Certificate: FM, FM-C, IECEx & ATEX
- High accuracy is ensured by sophisticated digital temperature compensation algorithms
- Stainless steel and titanium version for use in acidic or otherwise aggressive media
- Short response times suitable for dynamic pressure measurements
- Fast customization thanks to configurable product design
- Reverse polarity and short circuit protected, with integrated overvoltage protection
