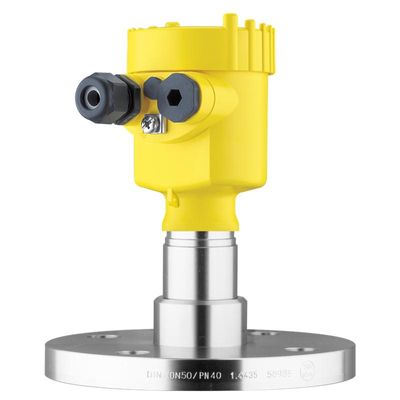

VEGABAR - Model 83 -Pressure Transmitter with Metallic Measuring Cell
With metallic measuring cell, for high pressures. Application area: For measurement of liquids and viscous products with high process pressure. The VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industries. The VEGABAR 83 offers special advantages in applications with high pressures. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.
- Maximum dependability and safety through proven technology
- High reliability through vacuum resistant version
- Universal use due to welded measuring cell
The pressure transmitter VEGABAR 83 is ideal for level and pressure measurement of liquids and viscous products with high process pressure. With its metallic measuring cell, the instrument delivers excellent measurement accuracy, even under a vacuum.
This pressure transmitter is the first choice for process pressure or level measurement in processes with high pressure, e.g. for
- circuit pressure measurement in hydraulic pumps
- pipeline pressure measurement
- bitumen level measurerment in asphalt mixing plants
- storage tank level measurement, e.g. for milk in dairies
Level measurement and point level detection in bitumen tanks
To the application- Measuring range -Distance: - [Meter-Foot]
- Measuring range -Pressure: -1 ... 1000 bar [Bar - kPa - psi]
- Process temperature: -40 ... 200 °C [°C - °F]
- Process pressure: -1 ... 1000 bar [Bar - kPa - psi]
- Accuracy: 0.075 %
- Materials, wetted parts:
- 316L
- Alloy C22 (2.4602)
- 316Ti (1.4571)
- Alloy C4 (2.4610)
- Threaded connection: ≥ G½, ≥ ½ NPT
- Flange connection: ≥ DN25, ≥ 1"
- Hygenic fittings:
- Clamp ≥ 1" - DIN32676, IS02852
- Slotted nut≥DN25-DIN 11851
- Varivent≥DN25
- hygienic fitting with tension flange DN32
- Hygienice flange connection 2 DN50 DIN11864-2
- SMS1145DN51
- SMS DN38
- Hygienic fittings 2 DN33 - DIN11864-1 -A
- Hyg. collar clamp adapter DN40PN40 DIN11864-3-A
- Hyg. clamp connection D1N11864-3-A; DN50 Rohro53
- Swagelok VCR screwing
- Varivent G125
- Seal material:
- EPDM
- FKM
- FFKM
- FEPM
- Housing material:
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- Protection rating:
- IP66/IP67
- IP66/IP68(1 bar)
- IP68(0,2bar)
- IP66/IP68(25bar)
- IP69K
- Output:
- Profibus PA
- Foundation Fieldbus
- 4... 20 mA
- 4 ... 20 mA/HART - two-wire
- Modbus
- Secondary electronics for electronic differential pressure
- Ambient temperature: -40... 80 °C
Approvals
- Scope:
- ATEX / Europe
- CSA/Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Russia
- IEC/worldwide
- INMETRO/Brazil
- CCOE/India
- CSA/USA and Canada
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Foodstuffs/Pharma:
- 3A
- EHEDG
- FDA
- EG 1935/2004
- Ship approval:
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- Overfill protection:
- WHG
- VLAREM II
- SIL qualification: SIL2
Display & adjustment:
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™. PDM)
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
