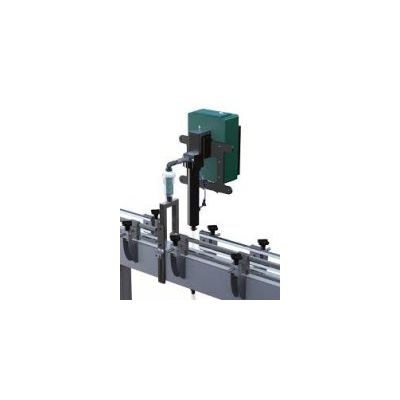

Cascade - Model CT2215 -Pressurised Can Leak Detection Systems

Detects leaks from

• Improperly fitted gaskets
• Faulty Valves
• Trapped dip tubes
• Missing bungs
• Faulty seam welds and joins
• Pinholes
• Construction faults

Value : CT2215

• Application : Leak detection system
• Measurement technique : IR absorption spectroscopy
• Mid IR source : Quantum cascade laser
• Laser classification CLASS 1
• BS EN 60825-1:2007 Safety of laser products
• Equipment classification and requirements (identical to IEC 60825-1 2007)

Performance :

• Sensitivity : 1 bubble per second
• Line speed : Up to 60 cpm
• Can dimensions : Up to 350mm (H) x 80mm (D)
• Response Time : 20 ms

Environmental :

• Temperature range : 10 to 30°C
• Sample gas temperature range : Room temperature
• Humidity range : N/A
• Protection class : IP65
• Hazardous area classification : Ex II 3G Ex nR II T6(10°C Tamb 30°C)

Inputs and Outputs :

• Analogue signal out : n/a
• Analog signal in : n/a
• Digital signal out : 3 x normally open contact
• Digital signal out : 10/100Base T Ethernet
• Inlet gas port connector : 3/4 in BSPT
• Exhaust gas port connector : 3/4 In BSPT

Electrical Rating :
Power supply : 120V AC 60Hz/240V AC 50Hz 200WA

Dimensions :

• Size : 600 x 330 x 500mm (HxWxD)
• Weight : 20 kg
• Installation : On production line
