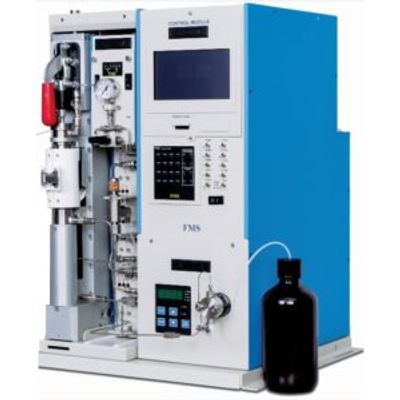

FMS - Model PLE -Pressurized Fluid Extraction System for Food & Environmental
Pressurized Fluid Extraction (PFE) or Pressurized Liquid Extraction (PLE) is a new sample extraction method that employs liquid solvents at elevated temperatures and pressures to prepare samples for analysis by either gas chromatography or liquid chromatography. Pressurized liquid extraction is similar to Soxhlet extraction, except that during the extraction process the solvent condition inside the PLE cell approaches the supercritical region which results in more efficient extractions. The elevated temperature allows the sample to become more soluble and achieve a higher diffusion rate while the elevated pressure keeps the solvent below its boiling point. At elevated pressures and temperatures solvents can penetrate solid samples more efficiently which reduces solvent usage.
A pressurized liquid extraction when compared to a traditional Soxhlet extraction shows a reduction in extraction time to 22 minutes from 18 hours and a decrease of total organic solvent consumption to 80 mL or less of organic solvent from 300 mL.
To perform a pressurized liquid extraction, between 5 grams and 100 grams of sample is mixed with sodium sulfate, loaded in the extraction cell and capped with two filtration end fittings. The PLE™ system then automatically starts pressurizing and heating the samples. The pressure is maintained at 1500-3000 PSI, at a temperature of 70-200 ºC. The extracted solvent containing the target analytes is then automatically transferred to a concentration/evaporation vessel where it is brought to final volume directly in a gas chromatography (GC) or liquid chromatography (LC) vial. The vial can then be transferred to the analytical instrument for final analysis.
- Automated Sample Preparation for Dioxins and Furans in Stack Emissions
- Total Extractable Fat using Pressurized Liquid Extraction (PLE)
- Antioxidants in HDPE by PLE
- EPA 1613 PCDD-Fs in Cranberry Pulp by PLE and PowerPrep
- Diesel Range Organics by PLE
- EPA 1613 PCDD-Fs and PCBs Analysis in Pet Food Using Automated Extraction and Cleanup
- EPA 8081B Toxaphene in Fish by PLE and PowerPrep
- EPA 1613 Dioxins and Furans in Freeze-Dried and Regular Milk by PLE and PowerPrep
- EPA 1613 Dioxins and Furans in Egg Yolk by PLE
- EPA 1613 Dioxins and Furans in Crab Meat by PowerPrep and PLE
- EPA 1613 and 1668C The Analysis of PCDDs PCDFs and PCBs in River Sediment with Automated Extraction and Clean Up
- EPA 1613 and 1668C POPs Extraction and CleanUp using Low Solvent Green Total EconoPrep
- EPA 1613 and 1668 PCDDs PCDFs and PCBs in Fish by Automated Sample Processing
- EPA 1613 and 1668 Dioxins PCBs and PBDEs in Human Serum by PLE and PowerPrep
- EPA 1613 and 1668 Dioxins Furans and PCBs in Peanut Butter Samples by PLE and PowerPrep
- EPA 1668 PCBs in Coffee via PLE and Reduced Volume Cleanup
- Pesticide Residue Analysis Using Pressurized Liquid Extraction for the Analysis of Pesticides in Food by GC/MS
- A Quick Screen Method for the Extraction, Cleanup and Concentration of Toxaphene in Fish
- Dioxins, PCBs and PBDEs in Human Serum Using Automated Pressurized Liquid Extraction, Multi-Column Cleanup, and Concentration
- Extraction of Antioxidants from High Density Polyethylene (HDPE) By Pressurized Liquid Extraction (PLE)
- One Step Extraction, Cleanup and Direct-to-Vial Concentration For PCBs in Soil and Sediment
- One Step Extraction, Cleanup and Concentration of Pesticides from Soil
- One Step Extraction, Cleanup and Concentration of Chlorinated Pesticides in Raw Coffee Beans
- Pressurized Liquid Extraction of Soil Samples for the Analysis of Diesel Range Organics by GC/FID
- Total Extractable Fat Using Pressurized Liquid Extraction (PLE)
- The Analysis of Chlorinated Dioxins using Automated Pressurized Liquid Extraction, Multicolumn Cleanup and Concentration
- Method for the Validation of PAHs in Soil and Sediment Samples Using Pressurized Liquid Extraction and Automated Cleanup
- The Analysis of Polychlorinated Dibenzo-p-dioxins, Furans and Biphenyls in River Sediment with Automated Extraction and Clean Up
- Use of Pressurized Liquid Extraction and Automated Column Chromatography in the Analysis of Polychlorinated Dibenzo-p-dioxins, Furans and Biphenyls in Human Serum
- The Analysis of Polychlorinated Dibenzo-p-dioxins and Furans in Cranberry Pulp with Automated Extraction and Reduced Solvent Volume Clean Up
- Polychlorinated Dibenzo-p-dioxins, Furans and Biphenyls in Fish Automated Sample Processing
- Analysis of Soil for Polychlorinated Dibenzo-p-dioxins, Furans and Biphenyls using Pressurized Liquid Extraction and Automated Clean Up
- The Analysis of Chlorinated Dioxins, Difurans in Pet Food
- The Analysis of Polychlorinated Biphenyls in Coffee using Automated Extraction and Reduced Solvent Volume Clean Up
- Automated Extraction and Cleanup of Egg Yolk Dioxins and Furans
- Analyzing Infant Formula for Dioxins and Furans using Pressurized Liquid Extraction and Automated Cleanup
- Automated Extraction and Clean Up of Crab Meat Dioxins and Furans
- Dioxins, Furans, and PCBs in Peanut Butter Samples Processed with Automated Extraction and Clean Up
- Analyzing Freeze-Dried and Regular Milk for Dioxins and Furans using Pressurized Liquid Extraction and Automated Clean Up
- One Step Extraction, Cleanup and Concentration for PBDEs in Soil
- Automated Extraction and Clean Up of Wood Boiler Ash Samples Dioxins, Furans, and PCBs
The PLE® system is a high-speed pressurized liquid extraction system designed to perform sample extraction of multiple samples simultaneously. The PLE system delivers high recoveries and excellent precision for all analytes in minutes instead of hours. Inexpensive stainless steel extraction cells with end cap filtration keep operational costs at a minimum. Optional disposable end cap filtration increases productivity and saves valuable time.
Reduce Solvent Costs
Pressurized liquid extraction uses as little as 15 mL of solvent compared to more than 500 mL of solvent required to perform Soxhlet extractions.
Reduce Solvent Waste
The PLE system reduces solvent waste by using solvents more efficiently.
Increase Productivity
The entire extraction and cleanup may be performed in less than 30 minutes. Traditional methods can take 10 to 16 hours.
Reduce Operating Costs
Rapid extraction and clean-up, along with reduced solvent use and waste, reduces operating costs by as much as 70 percent.
Five to 250 mL Extraction Cell Sizes
The PLE™ system offers 5-250 mL low cost stainless steel extraction cells with Teflon endcap filtration. This wide range of extraction cell volumes allows the use of the same unit for all sample sizes, even in the same run.
Modular, Expandable and Affordable
The modular design of the PLE system allows you to purchase a one, two or three sample system to fit your budget. The system can be expanded to a five or six sample system as your application grows.
Eliminate cross contamination
Optional low-cost disposable extraction cells and Teflon filtration endcaps ensure trouble-free extraction and eliminate the risk of cross contamination.
One-Step Sample Extraction and Cleanup
The optional in-line cleanup module performs the entire sample extraction and cleanup in one step with increased speed and reduced cost.
Automatic Operation and Documentation
Real-time software allows six channels of pressure and six channels of temperature data to be plotted simultaneously. This powerful feature allows automatic documentation of all extraction data. Temperature and pressure data can be superimposed and printed in either graphic or tabular format and stored for future reference.
Modular Construction Provides for Easy Maintenance
The modular desgin of the PLE sytem combined with its exposed plumbing enables efficient system maintenance. The PLE system’s channels are designed to operate independently, so if one channel fails the others will continue to perform. This versatility ensures easy replacement with no down time.
Leak and Clog Free Operation
Simple design combined with large bore plumbing enables the PLE system to operate virtually leak and clog free.
Multiple Extractions
Programming of variable pressure and temperature allows extraction of a variety of compounds.
