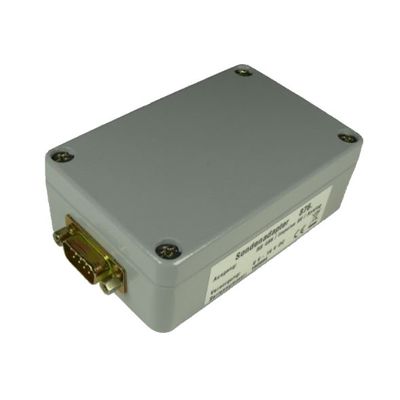

Automess - Model 876.2 -Probe Adapter

SHARE

A 6150AD is connected to this probe adapter using the connecting cable EB84-0193 (not included in the delivery), whereby the probe adapter records the measured values of the 6150AD. Any probe from the 6150AD family can optionally be connected to this connection cable using a standard probe cable. The probe adapter then records the readings taken by the probe. Two analogue outputs: logarithmic 0 to 1 volt for the dose rate and a range identifier (µSv/h, mSv/h, Sv/h). These analogue outputs match the 2-line mini recorder L120E-2 for the Szintomat 6134A(/H).

All models have the following properties

  • RS485 interfaceUp to 32 probe adapters can be connected to a central computer and evaluated via an RS485 bus (2 wire). The cable length can be up to 1,000 m. With the help of one (or more) repeaters, even larger distances can be bridged and up to 99 devices can be connected to one computer.
  • Averaging and storageThe probe adapters can average and save the measured values. The duration of the averaging can be set using commands via the RS485 interface. 1,000 mean values can be saved in the probe adapter. In addition to the mean value, the maximum value and the time are also saved. A warning threshold can also be set. If the warning threshold is exceeded, the duration of the averaging changes to a value that can also be set.
  • Pulse outputThe probe adapters use the dose rate to calculate a dead time corrected pulse frequency that is proportional to the dose rate and can be processed by an external counting device. A pulse frequency of 100 kHz corresponds to the end of the dose rate range of the respective detector.
  • Analogue outputThe analogue outputs of the individual models have different properties, see below.
  • Power supply 6 to 16 VDC.
  • Aluminium housing, dimensions 100 × 65 × 35 mm3.
