ProCepT - Model GMP -Spray Dryer / Chiller

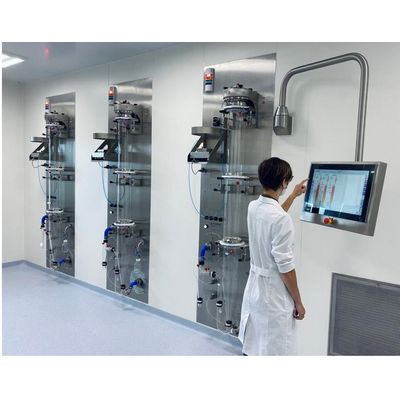

The PROCEPT Closed Loop Spray Dryer / Chiller GMP

Increase your spray drying capacity without scale-up problems using multiple columns with a single central control system. Our modular system has several very important advantages including:

• Faster time to market.
• Fewer production risks.
• Flexible production capacity.
• Phased investment capacity follows your needs.
• Fits into standard infrastructure.
• First small clinical batches without scale-up issues.

The Process

• Spray Drying
• Spray Chilling

• High process yields (>90%) from a few ml to batches of several liters.
• Particles from 1-350µm
• Water and organic solvents
• Different nozzle types: 2-fluid, 3-fluid, cooled, heated, ultrasonic.
• Chilling or congealing; waxes, polymers, carbohydrates,..
• Provision for product cooling for very temperature sensitive or low glass transition temperature products.
• Touch screen PC control with real-time trending and excel data reporting.
• Critical process data such as temperatures, pressures, and liquid/gas flows are handled by the control unit.
• Closed loop solvent processing under N2.
• Designed for use in Atex Zone 2 areas.
• Software 21 CFR Part 11 compliant, OPC-UA and LDAP.
• Possiblity to generate larger particles with better flow characteristics.
• Stand alone wheelable unit with small footprint.
• Through the cleanroom wall integration in technical zone.
• All glass columns, transport tubes, cyclone and product collection vessels for unsurpassed visibility, or
• Insulated stainless steel columns, stainless transport tubes, cyclone and product receivers, or
• Combination of glass and stainless steel components.
• Go to R&D Spray Dryer

• Modified/ Controlled/ Sustained Release
• Stabilisation
• Solubility Enhancement
• Inhalation
• Flowability
• Reconstitution
• Taste Masking
• Encapsulation
