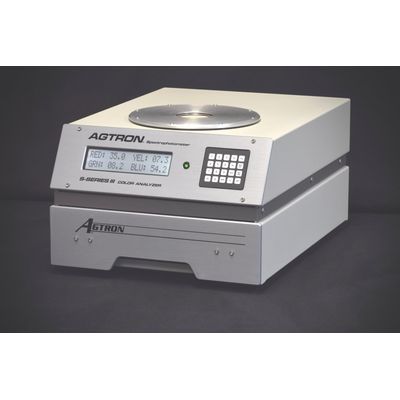

Agtron - Model S Series III -Process Analyzer
The new S-SERIES II is the result of Agtron’s 50 years of experience supplying analytical equipment to the food industry. It is a reflectance measuring abridged spectrophotometer designed specifically to deal with the challenge of measuring color and process related change associated with food products. It is an all solid-state replacement for the previous Agtron M-45D general application small area analyzer.
Agtron analyzers have become the quality control standard for a variety of products worldwide. The S-SERIES II is suited for appearance and color measurement of a wide range of color homogenous and color semi-homogenous products including but not limited to flour, grains, nuts, fruit concentrates and juices, powders, spices, seasoning, sauces, paste, condiments, liquids, and small particulate items.
Four Color Reflectance Mode (red-yellow-green-blue): Provides a numeric score for each of four color bands that represent the visible spectrum simultaneously
Single Color Reflectance Mode: Displays a user selected color-band as a numeric score
Appearance Mode: Uses the four visible color-bands and provides a single score calculated with perception bias. This score relates to how product color is perceived by the human eye.
Brightness Mode: Uses the full color spectrum to determine the perceived lightness/darkness of a product
Ratio Mode (Optional): This is a special feature for determining the maturity of fresh tomato juice. It also accurately evaluates the degree of cook for tomato sauce and paste.
- 4.8sq.in Circular Viewing Window
- Self Contained Internal Micro-Processor
- Excellent Stability, Linearity & Resolution
- Long-Life Solid State Illumination
- Fully Automated Calibration
- Durable Synthetic Calibration Standard
- Calibration Flexibility
- High Contrast Backlit LCD Display
- Super-Regulated & Isolated Internal Power Supply
- Sturdy Construction Suitable for the Production Environment
