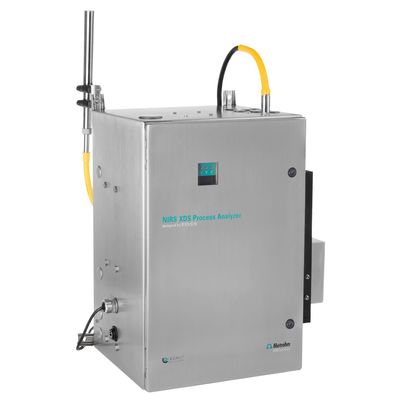

Metrohm - Model NIRS XDS - A629280110C -Process Analyzer - MicroBundle SinglePoint
FromMetrohm AG
The NIRS XDS Process Analyzer – MicroBundle provides the next generation of process analyzers for real-time analysis in the pharmaceutical and chemical industries Non-destructive, accurate measurements of practically any sample type (powders, slurries, liquids,..) are performed directly in the process line, granulator, dryer or reaction vessel. The micro bundle fiber optics allows the measuring point to be up to 35 meter away from the XDS NIR process analyzer.
Most popular related searches
NIRS XDS process analyzer
process analyzer
flow-through cell
NIR process analyzer
process analysis system
NIR spectroscopy
near infrared spectroscopy
NIR process analysis system
fiber optic probe
near IR analyzer
- Dimensions in mm (W/H/D): 457/572/387
- Weight kg: 42
- Ingress Protection: IP65
- Ambient Temperature: 0–30 °C
- Number of sample streams: 1 to 9
Technical specifications
- Wavelength range: 800 - 2,200 nm
- Detector: Extended InGaAs (Indium Gallium Arsenide)
- Data Increment: 0.5 nm
- Average time per result: 3 - 30 seconds
General
- Lifetime of the light source: = 8000 h
- Power supply: 100 - 240 VAC, 50 - 60 Hz, 1 A,
- Power consumption: 100 W typical, max. 300 W
- Software package: Vision for instrument operation and method development
- Standard Operating temperature: 0 - 35 °C (32 - 95 °F)
- Humidity: 10 - 90% relative
- Weight: 42.2 kg (93 lbs)
- Dimensions (W x H x D): 407 x 610 x 362 mm (16 x 24 x 14.25 inches)
- Housing: basic device IP65/Nema 4X, stainless steel
- Various enclosure options for hazardous areas or environmental conditions outside the above mentioned conditions available.
Fiber Optics and Probes
- Single Fiber Optic Cable with SMA connectors at the analyzer and probe (requires probe or flow-through cell for use)
- Stainless Steel or Hastalloy Probes (other materials available as well)
- Micro Transmission Probe Pair
- Single-sided Transmission Probe
- Purge and 45 degree angle probe
- Transmission flow-through cell
Process Communication Options
- OPC
- Digital protocols
- MODBUS, PROFIBUS, etc.
- VISION I/O Modules
- Available with 8, 16, or 24 Analog Channels, 24 Digital Channels
