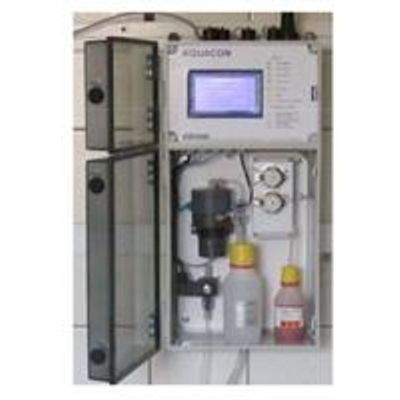

Aquacon - Model CH10 -Process Analyzers with Touchscreen

Working principle of the analyzer is the titration of a water sample with hydrochloric acidto  determine  the  KS4,3 value(+m-value).  A  second  reagent  (indicator)  is  dosed  for  thephotometric  detection  of  the  color  change.  A  control  unit  with  a  microprocessor  takescare for the automatic procedure of analysis.

Applications  for  the  new  analyzers  are  the  survey  and  monitoring  of  water  treatmentplants and the control of decabonisation plants. The analysis results can be used for themonitoring/control of a supervised process

• good cost-benefit relationship,
• high resolution,
• adjustable limit and alarm value,
• programmable analog recorder output (0/4-20 mA),
• adjustable break time between two analysis (1 -99min),
• external start/stop of an analysis possible,
• multi range power supply (110 - 230 Volt, 50 - 60 Hz) for variable use
• automatic operation incl. self test and drift compensation, no external calibration
• polycarbonate wall cabinet included
