Plast-O-Matic - Process Cooling Water Sticks

SHARE

Advantages of specifying Plast-O-Matic Sticks: Corrosion-resistant thermoplastics are maintenance-free, last years longer than metal sticks. Reinforced direct connection between components eliminates extra joints, weak points and accidental breakage. Smaller footprint than metal sticks. One part number, two connections per stick simplifies installation and reduces cost. Easily customized for specific applications. Molded, Machined & Assembled in USA -- minimal lead times, superior quality.

Most popular related searches
pressure gauge
ball valve
pressure regulator
inline flow meter
process cooling water
diaphragm valve
pinch valve
cooling water
flow meter
process water cooling

Supply Sticks are based on the high-performance/high flow Plast-O-Matic Pressure Regulator and the True Blue Ball Valve with optional valve combinations available.

Standard Configurations:

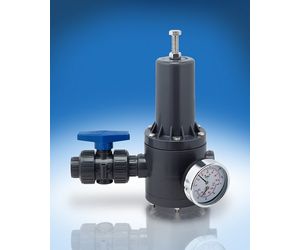

  • Ball Valve, Pressure Regulator and Pressure/Temperature Combination Gauge (2½" face) as shown at right.

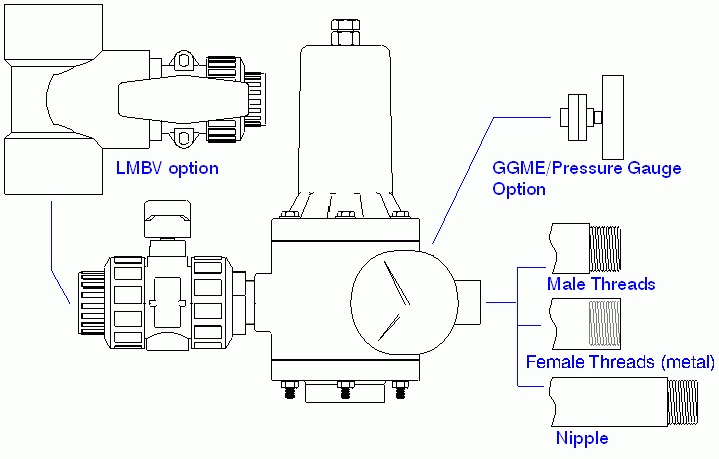

  • Lateral Reducing Ball Valve (Series LMBV), Pressure Regulator and Pressure/Temperature Combination Gauge -- Provides a superior connection to lateral drops.
  • Ball Valve, Pressure Regulator and Pressure/Temperature Combination Gauge plus nipple connection.
  • 1/2" through 2" sizes standard; others available.

Options and Accessories:

  • Male PVC threads for connection to female Push-Lok Fittings on downstream side
  • Female metal threads for connection to male Push-Lok Fittings on downstream side
  • Choice of Pressure Gauge only (combination gauge is standard)
  • Gauge Guard to eliminate wetted metals -- Pressure Gauge only

Return Sticks are based on an inline flowmeter and True Blue Ball Valve or True Blue Diaphragm Valve with optional valve combinations available.

Standard Configurations:

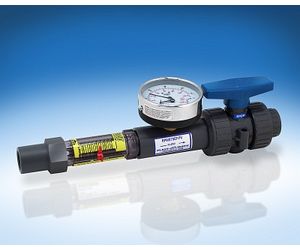

  • Ball Valve, Inline Flowmeter and Pressure Gauge (2" face). Similar to stick shown at right, which has optional Pressure/Temperature Gauge.

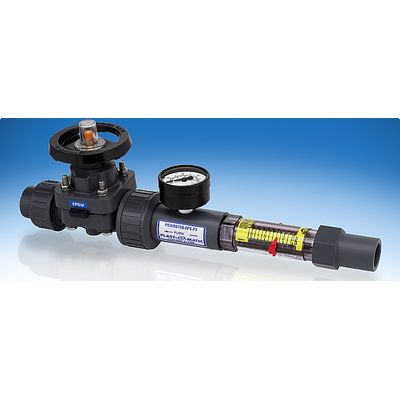

  • Diaphragm Valve, Inline Flowmeter and Pressure Gauge.
  • Pinch Valve, Inline Flowmeter and Pressure Gauge.
  • 1/2" through 2" sizes standard; others available.


Options and Accessories:

  • Male PVC threads for connection to female Push-Lok Fittings on upstream side
  • Female metal threads for connection to male Push-Lok Fittings on upstream side
  • Socket or Nipple Connection on upstream and/or downstream side
  • Pressure/Temperature Combination Gauge
  • Alternative flowmeters.
