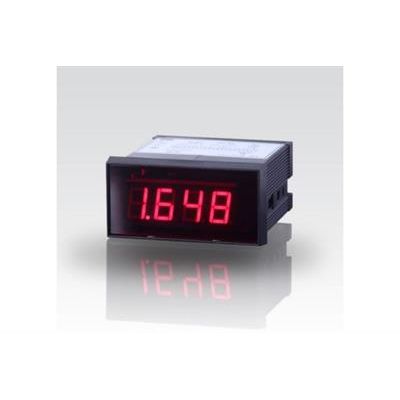

BD|Sensors - Model CIT 200 -Process Display 72 x 36 mm
FromBD|SENSORS GmbH
Features: 4-digit LED display, input signal: 0/4 ... 20 mA, 0/1 ... 5 V, 0/2 ... 10 V, communication interface RS-485 (Modbus RTU), front panel housing 72 x 36 mm.
- input signal PT 100 / PT 500 / PT 1000
- free scalable display
- 4 characteristic curve functions selectable (linear, root, square function or max. 20 free selectable supporting points)
- display brightness and filter adjustible
- programming via infrared remote control IR 1 (optional)
Input:
- 0/4 … 20 mA, 0/1 … 5 V;
0/2 … 10V - PT 100/ PT 500/ PT 1000
Display:
- 4-digit LED-display
