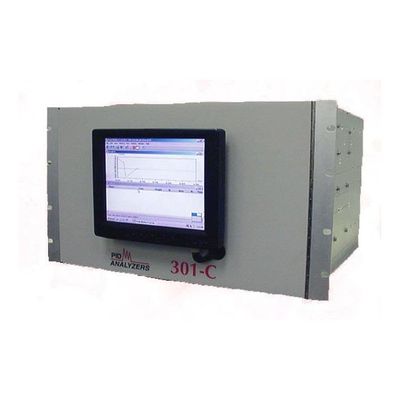

PID Analyzers - Model 301-C -Process Gas Chromatograph for Process and Environmental Monitoring
The Model 301-C PGCs are flexible and versatile Analyzers that are in their fourth generation. The addition of these new Analyzers greatly improves the capability and range of Process Analyzers from PID.
Most popular related searches
catalytic combustion detector
thermal conductivity detector
process gas chromatography
flame ionization detector
flame detection system
combustion detector
photometric detector
conductivity detector
flame sensor
process analyzer
- PID Lamps : Our 9.5 and 10.6 eV lamps remain the best in the business since we developed them over 30 years ago.
- FID : Our very sensitive FID has flame out sensor that will shut off the hydrogen if the flame goes out.
- FPD : Our very sensitive FPD has flame out sensor that will shut off the hydrogen if the flame goes out.
- Enclosures : 19`` rack mount or NEMA 4 wall mount.
- Ease of calibration - SemiAutomatic or Remote Automatic Display : Our 8” Color VGA display is easy to read. The display is a touch screen.
- PC : Pentium Computer with > 100 GByte hard drive & 1 GByte of RAM
- Operating system : Windows XP® embedded
- Peak Detection & System Operation : Controlled by our 32 bit PeakWorks software program with more than 20 years of development.
- ADC : Our 16 bit ADCs provide a resolution of 1 part in 64,000 and our signal algorithm minimizes noise by signal averaging in the msec range; the ADC can acquire positive or negative signals.
- Autoranging : We have 3 ranges with computer controlled autoranging- x1, x 10, x 100.
- Autozero : Beginning of each run.
- Programmable Voltage/current output : 0-1VDC/4-20 mA (optional).
- Digital outputs : RS232, 10/100 network connection; RS485, MODBUS optional.
- Programmable setpoints : The low and high setpoints (depends on the options) can be customer programmed for each point and/or compound.
- Detectors: Photoionization detector (PID), Flame ionization detector (FID), Thermal conductivity detector (TCD), Flame photometric detector (FPD), Far UV absorbance (FUV) detector, Catalytic combustion detector (CCD).
- Sensor(s): 1 or 2 detectors
- Span Drift:
- Weight:
- 19`` Rack mount - 35 pounds
- Wall – NEMA 4- 55 pounds (fiberglass)
- Species measured:
- PID & FID: Organics (VOCs by PID or FID) and inorganic species (H2S, NH3, AsH3… ) that can be ionized by the PID lamp (9.5, 10.6 or 11.7 eV)
- TCD: Universal detector- fixed gases (O2, N2, CO…), organic and inorganic compounds, very sensitive for H2, He, Xe
- FPD: Selective response for S or P compounds
- Far UV: Nearly universal response for organic and inorganic compounds
- CCD: Combustible compounds such as hydrocarbons
- Precision: +/- 1-2% of reading
- Zero Drift: NA- autozero on each run
- Detection Limit:
- PID - 0.5 ppb benzene
- FID - 50 ppb benzene
- TCD - H2- 10 ppm; O2 150 ppm
- Response time: Depends on retention times
- Power consumption: < 150 watts maximum; 115 VAC, 1.5 amps
- Instrument operating conditions: 5-40 degrees C, 0-95% RH (non-condensing)
- Linear Dynamic Range:
- PID - 108
- FID - 2 x 106
- TCD - 2 x 104
- FPD- S - 103; P 105
- Far UV - 106
- CCD - 5 x 104
- Sample flow rate: > 1 LPM
- Dimensions:
- 19`` Rack mount - 19`` W x 11``H x 14``D
- Wall - 22``W x 22``H x 17``D
