Komax Delta - Model 240 -Programmable Crimping Machine With Crimp Force Monitoring

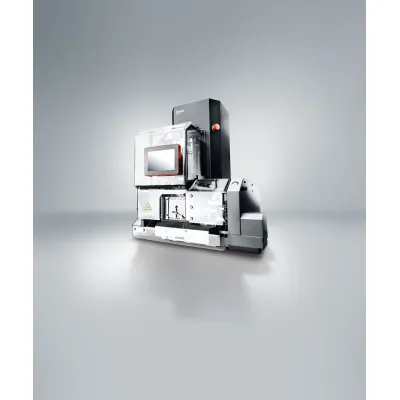

The Delta 240 semi-automatic crimping machine with crimp force monitoring offers automatic crimp height adjustment and stripping unit – optionally with bad contact cutter. The Delta 240 semi-automatic crimping-stripping machine with automatic crimp height adjustment offers highly exact repeatability and process quality thanks to its precise mechanics. CFA/CFA+ crimp force monitoring reliably detects missing strands, incorrect wires or insulation in the wire crimp. The cable is not moved during the work process– an advantage for pre-assembled cables. The graphical user interface enables intuitive operation with context-sensitive help, language selection and user rights. Thanks to programming, the settings are reproducible and operator input is minimized. The storage space has been increased to up to 5,000 articles. As an option, the Delta 240 can also be equipped with a bad contact cutter, suction unit and sequence function.
Metric
- Strip length min.: 0.1 mm
- Strip length max.: 13 mm
- Dismantling length min.: 33 mm
- Dismantling length with "short dismantling length" option min.: 23 mm
- Wire cross section, crimping min.: 0.03 mm²
- Wire cross section, crimping max.: 6.6 mm²
- Wire cross section, stripping min.: 0.03 mm²
- Wire cross section, stripping max.: 4 mm²
- Crimp force max.: 20 kN
- Crimping cycle time min.: 0.8 sec
- Stripping and crimping cycle time min.: 1.8 sec
- Crimp height adjustment min.: +0.2 mm
- Crimp height adjustment max.: -0.8 mm
- Stroke min.: 10 mm
- Stroke max.: 40 mm
- Shut height, standard: 135.8 mm
- Shut height on commission min.: 118.3 mm
- Shut height on commission max.: 174.8 mm
- Repetition accuracy: 0.006 mm
- Noise level (without extraction): < 71 dB
- Electrical connection: 1×230 V, 50/60Hz (range 180 - 250 V); 1×115 V, 50/60 Hz (with external transformer)
- Compressed-air connection for options: 4-6 bar
- Network connection: RJ-45, MIKO (Manufacturing Interface Komax, REST, MQTT, HTTP)
- Weight: 110 kg
- Length: 700 mm
- Width: 500 mm
- Height (with safety cover closed): 750 mm
- Height (with safety cover open): 950 mm
- Ambient temperature min.: 10 °C
- Ambient temperature max.: 40 °C
- Relative humidity, non-condensing max.: 90 %
- Split cycle for closed terminals min.: 1 mm
- Split cycle for closed terminals max.: 20 mm
- Cut terminals (BCC) max.: 2.5 mm²
- Cut conductors (BCC) max.: 6.6 mm²
Imperial
- Strip length min.: 0.004 in
- Strip length max.: 0.51 in
- Dismantling length min.: 1.3 in
- Dismantling length with "short dismantling length" option min.: 0.9 in
- Wire cross section, crimping min.: AWG32
- Wire cross section, crimping max.: AWG9
- Wire cross section, stripping min.: AWG32
- Wire cross section, stripping max.: AWG11
- Crimp force max.: 4500 lbf
- Crimping cycle time min.: 0.8 sec
- Stripping and crimping cycle time min.: 1.8 sec
- Crimp height adjustment min.: +0.008 in
- Crimp height adjustment max.: -0.03 in
- Stroke min.: 0.39 in
- Stroke max.: 1.57 in
- Shut height, standard: 5.35 in
- Shut height on commission min.: 4.66 in
- Shut height on commission max.: 6.88 in
- Repetition accuracy: 0.00024 in
- Noise level (without extraction): < 71 dB
- Electrical connection: 1×230 V, 50/60Hz (range 180 - 250 V); 1×115 V, 50/60 Hz (with external transformer)
- Compressed-air connection for options: 58 – 87 psi
- Network connection: RJ-45, MIKO (Manufacturing Interface Komax, REST, MQTT, HTTP)
- Weight: 242.5 lb
- Length: 27.6 in
- Width: 19.7 in
- Height (with safety cover closed): 29.7 in
- Height (with safety cover open): 37.4 in
- Ambient temperature min.: 50 °F
- Ambient temperature max.: 104 °F
- Relative humidity, non-condensing max.: 90 %
- Split cycle for closed terminals min.: 0.04 in
- Split cycle for closed terminals max.: 0.78 in
- Cut terminals (BCC) max.: AWG13
- Cut conductors (BCC) max.: AWG9
