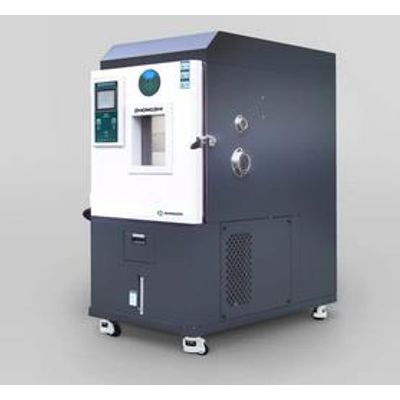

Zhongzhi - Model CZ-A -Programmable High and Low Temperature Damp Heat Test Chamber

SHARE

The constant temperature and humidity testing machine, also known as the environmental testing machine, test the heat resistance, cold resistance, dry resistance, and humidity resistance of various materials. It is suitable for testing the quality of electronic, electrical, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace, and other products.

Most popular related searches
environmental testing system
humidity testing
water supply
environmental testing
fluorescent lamp
chemical building
test chamber
high-low temperature test chamber
temperature test chamber
vapor condensation

It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, ,LED, ic chips, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

  1. High-quality appearance, the body adopts an arc shape, the surface is treated with matte stripes, and the flat non-reaction handle is adopted, which is easy to operate, safe, and reliable;
  2. Rectangular multi-layer glass viewing window, which can be used to observe the test items during the test. The window is equipped with an anti-sweat electric heater device to prevent water vapor from condensing and water droplets, and high-brightness PL fluorescent lamps keep the interior of the box illuminated;
  3. The double-layer insulation of the box door is tight and airtight, which can effectively isolate internal temperature leakage. With an external water supply system, it is convenient to supplement the water supply of the humidification barrel, and it can be recycled and used automatically;
  4. The compressor circulation system adopts the French “Taikang” brand, which can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series adopts environmentally friendly refrigerants (R23, R404, R507);
  5. The controller adopts an imported LCD screen, which can display the measured value, set value, and time at the same time;
  6. The controller has multi-segment program editing and temperature, and humidity can do fast (OUICK) or slope (SLOP) control;
  7. The built-in moving pulley is easy to move and place and has a strong positioning screw to fix the position.
