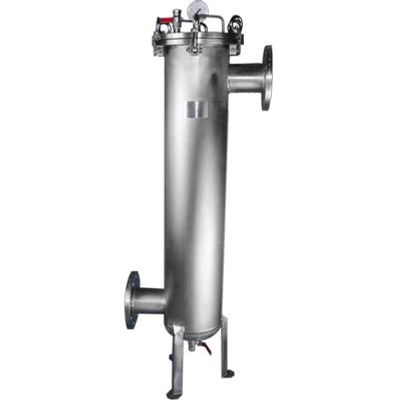

Proses - Single Bag Filter Housing
FromProses T.I.M.
Bag filter housings are pressurized housings with attached bag filters that are used in the filtering of liquids, air, and gas. Bag filters are used to filter substances. Bag Filter Housings come with Muff, Nipple, Flange, and Rakor connection types, and are available in PN6, PN10, PN16, PN25, and PN40 pressure classes.
Most popular related searches
bag filter housing
bag filter
filter bag housing
filter housing
baghouse filter
filter bag
single bag filter housing
bag housing
single bag filter
mesh filter
- Filtre Cinsi; Bag Filter Container
- Filter Size; Suitable for 230 , 380, 430 , 810 , other bag filters
- Filtering Capacity; Basket with Bag Filter in desired micron or covered with stainless steel mesh
- Filter Container Body; AISI304L and AISI316L Stainless Steel
- Gasket Material; Silicone , EPDM , Viton
- Bag Filter Diameter; Standard 180 mm and special production in the desired diameter
- Bag Filter Type; Polypropylene, stainless steel and galvanized steel head
- Input – Output; Top side entry – opposite bottom side exit
- Input – Output Diameters; DN25 (1″),DN40 (1 1/2″) , DN50 (2″), DN65 (2 1/2″) , DN80 (3″) , DN100(4″), DN125(5″), DN150( 6″)
- Input – Output Types; Sleeve Connection, Nipple Connection, Flange Connection, Union Connection
- Top Cover Type; Eyebolt Connection – easy to disassemble, with tilting eyebolts, BOM Lifting system for large containers
- Manometer; Pakkens Brand
- Bag Compression System; Our special design that will reduce the risk of bypassing and leaking filters to zero.
- Operating pressure; In the desired PN pressure class.
- Other; Please contact for detailed technical information.
