UVDI - Model V-PAC System -Proven Air Purification Device for Large Commercial HVAC Systems

• V-MAX^™ has independently proven 99.99% inactivation of airborne SARS-CoV-2 in a single pass at an airflow rate of 500 feet per minute. To replicate conditions in a typical HVAC duct, UVDI V-MAX^™ 254 nm UV-C lamps were arranged in a parallel configuration.
• Testing conducted in a modified HVAC duct built at certified BEI-recognized BSL-3 laboratory.
• Testing results verify the accuracy of UVDI’s proprietary product software which sets custom product specifications for targeted efficacy. The software was used to inform the testing protocols.
• Independently proven testing that provides scientific confirmation of UVDI V-MAX^™’s effectiveness against coronavirus variants.

Removes air contaminants by combining 254 nm UV-C and TiO2, creating powerful hydroxyl radicals via a 3-step process.

1. UV light illuminates the titanium di-oxide (Ti02) coated photocatalytic oxidation (PCO) panel, to begin an activation process.
2. The activation generates highly reactive hydroxyl radicals and super-oxide ions resulting in a strong chemical “oxidizing” reaction between the supercharged ions and gaseous pollutants such as VOCs and odor molecules.

3. This breaks the pollutant down into harmless carbon dioxide and water molecules, making the air more purified.

• Easy to install in both existing and new equipment
• Complete system fits in a section as small as 500 mm wide

• Scalable design to fit any plenum size

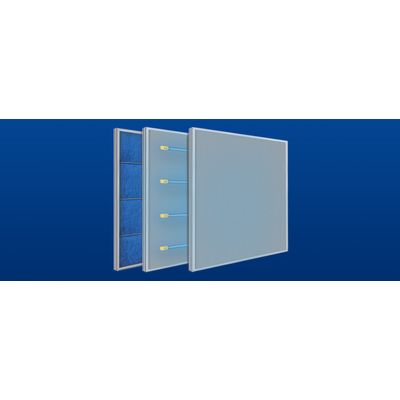

• Photocatalytic Panels (PCO) and BPS Lite^™ Activated Carbon panels are designed for installation in standard filter tracks

• Utilizes V-MAX^™ high output lamp systems

• Negligible pressure drop

• Removes interior and exterior gaseous pollution sources such as tobacco smoke, cleaning solvents, off-gassing from building materials, human metabolic by-products, vehicle exhaust, paint fumes, jet fumes, manufacturing process emissions, and agriculture process emissions that cause illnesses

• Rated for temperature 30°F to 150°F (1°C to 65°C)
• RH: Up to 95% non-condensing

Regulatory Approvals - ETL listed to UL/Canadian Standards

• UL 1598/CSA 22.2 250UL
• 1995/CSA 22.2 236UL
• 153/CSA 22.2 12 for category ABQK (Air Duct Mounted Accessories)

PCO Filter Panels

The PCO filter panels are made of durable aluminum honeycomb construction impregnated with a proprietary coating of titanium dioxide catalyst.

Activated Carbon Filter

Utilizes a 1" thick BPS Lite™ filter which is housed in the same filter holding frame as the PCO.

Classification

UL 900 classified filters available.
