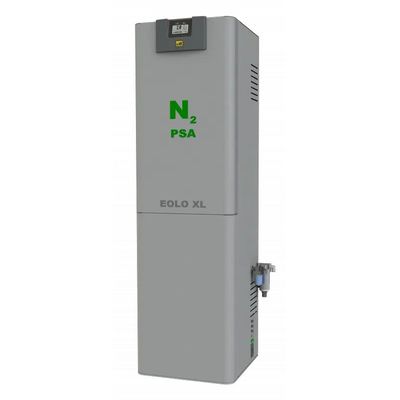

Model NG EOLO XL / ZNG EOLO XL - PSA UHP Nitrogen Generator
From Premium Gas Generators - Nitrogen Generators
The NG EOLO XL Ultra High Purity Nitrogen Generators are engineered to transform standard compressed air into a safe regulated supply of Nitrogen with a purity up to 99.9995%. They are equipped with columns containing carbon molecular sieve that remove the oxygen, some hydrocarbons, moisture and carbon dioxide and subsequently release only ultra high pure Nitrogen gas. The ZNG EOLO XL series is also equipped with a catalyst module to remove hydrocarbons (less than 0.1ppm). Exclusive electronic flow control that allows to generate Nitrogen with higher purity using a smaller volume of air and consequent reducing energy costs and the maintenance of external compressor. Continuous control of the operating parameters to maintain the system at its maximum efficiency.
Features
- Generates Nitrogen on demand from external compressed air
- Designed to run 24 hours a day
- Less bulky than the Nitrogen high pressure cylinders and safe improvement due to their elimination from laboratory
- Low power, low noise, low maintenance
- Internal Nitrogen tank
- Catalyst module to remove hydrocarbons in ZNG series
Main Applications
- GC
- ICP
- TOD
- DMA
- TMA
- TGA
- DSC

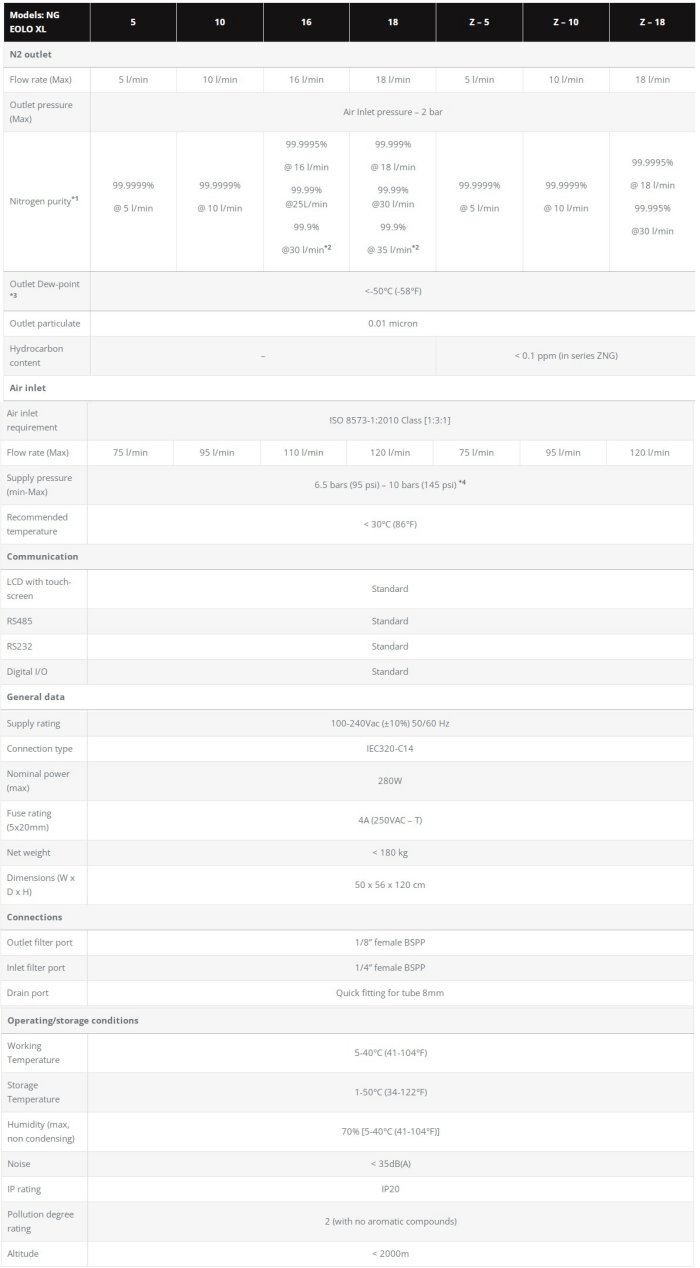

*1 The purity refers to the residual oxygen
*1 The purity refers to the residual oxygen
*2 With an external tank >50l; Inlet pressure >9bar
*3Suggested inlet pressure for optimal operation of the N2 generator >= 8 bar (116 psi)
