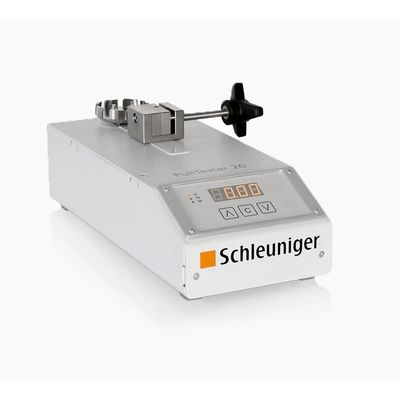

Schleuniger PullTester - Model 20 -Pull Testing Machine
FromKomax AG
The single-range PullTester 20 is an economical, motorized benchtop device for measuring the stability of the crimp connections with pull forces of up to 500 N. The PullTester 20 is equipped with a speed-controlled motor, ensuring consistent pull rates with two variable pull rates in accordance with standards such as IEC and SAE, which ensures repeatable and accurate data. Pull-to-break (destructive) tests can be measured in pound-force, Newtons, or kiloponds.The RS 232 interface allows for easy curve analysis and statistics. The simple LCD display makes programming and reading easy.
Most popular related searches
PullTester 20
Metric
- Analysis software: WinCrimp
- Measuring range, quantity: 1
- Pull-out speed, quantity: 2
- Power source: Electric
- Memory capacity: N/A
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: Normal pull test until wire breaks
- Stroke max.: 48 mm
- Pull-out speed: 25 / 50 mm/min
- Pull-out speed 2: 50 / 100 mm/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 20 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 140 mm
- Dimensions/length: 350 mm
- Dimensions/width: 185 mm
- Weight: 5 kg
- Temperature operation: 0 - 50 °C
- Protection class: IP 20
- Measurement range / force sensor: 500 N
- Measurement range N min.: 0 lbf
- Measurement range N max.: 110 lbf
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: LCD 4-digit
- Data interface: RS 232
- Unit of measurement: Newton (N), Kilopond (Kp), Poundforce (lbf)
- Power requirement: 24 V DC; 25 VA
Imperial
- Analysis software: WinCrimp
- Measuring range, quantity: 1
- Pull-out speed, quantity: 2
- Power source: Electric
- Memory capacity: N/A
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: Normal pull test until wire breaks
- Stroke max.: 1.8898 in
- Pull-out speed: 0.98 / 1.97 in/min
- Pull-out speed 2: 1.97 / 3.94 in/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 20 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 5.5118 in
- Dimensions/length: 13.7795 in
- Dimensions/width: 7.2835 in
- Weight: 11,0231 lb
- Temperature operation: 32 - 122 °F
- Protection class: IP 20
- Measurement range / force sensor: 110 lbf
- Measurement range N min.: 0 lbf
- Measurement range N max.: 110 lbf
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: LCD 4-digit
- Data interface: RS 232
- Unit of measurement: Newton (N), Kilopond (Kp), Poundforce (lbf)
- Power requirement: 24 V DC; 25 VA
