Komax Schunk PreFeeder - Model 2200 -Puller Prefeeding Machine
FromKomax AG

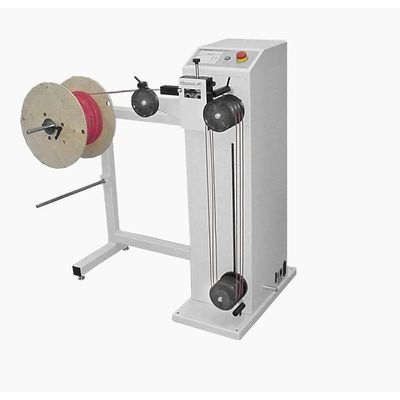

The PreFeeder 2200 is a puller prefeeding machine that pulls wire and cable with up to 15 mm (0.60”) in diameter from reels weighing up to 70 kg (154 lbs.). The PreFeeder 2200 features a powerful drive motor for handling heavy reels and wide belts, capable of pulling cables up to 15 mm (0.60”) in diameter.Its linear cable storage ensures a constant tensile force on the cable, regardless of feed speed. This stabilizes the physical conditions on the cable and the downstream processing machine, allowing cables to be processed more reliably at speeds of up to 2.5 m/s.The simple controls and ergonomic height of the control panel make the PreFeeder 2200 easy for the operator to handle.
Most popular related searches
PreFeeder 2200
Metric
- Pulling force: Maximum 150 N from cable rack
- Reel diameter: Maximum 762 mm (30”)
- CE conformity: The PreFeeder 2200 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Reel arbor diameter max.: 65 mm
- Reel arbor diameter min.: 19 mm
- Width of wire reel max.: 457 mm
- Weight of wire reel max.: 70 kg
- Height of wire outlet min.: 990 mm
- Height of wire outlet max.: 990 mm
- Wire diameter max.: 15 mm
- Wire diameter max.: 15 mm
- Electrical connection: 110/120 VAC, 60 Hzor 220/240 VAC, 50 Hz
- Dimensions/length: 978 mm
- Dimensions/width: 762 mm
- Dimensions/height: 1143 mm
- Weight: 65 kg
- Interfaces: HS/PF standard, Emergency Stop
- Speed: 0 - 2.5 m/s(0 - 8.2 ft/s)
Imperial
- Pulling force: Maximum 150 N from cable rack
- Reel diameter: Maximum 762 mm (30”)
- CE conformity: The PreFeeder 2200 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Reel arbor diameter max.: 2.5 in
- Reel arbor diameter min.: 0.75 in
- Width of wire reel max.: 18 in
- Weight of wire reel max.: 154 lb
- Height of wire outlet min.: 39 in
- Height of wire outlet max.: 39 in
- Wire diameter max.: 0.6 in
- Wire diameter max.: 0.59 in
- Electrical connection: 110/120 VAC, 60 Hzor 220/240 VAC, 50 Hz
- Dimensions/length: 38.5 in
- Dimensions/width: 30 in
- Dimensions/height: 45 in
- Weight: 143 lb
- Interfaces: HS/PF standard, Emergency Stop
- Speed: 0 - 2.5 m/s(0 - 8.2 ft/s)
