PBS - Pumps

• Compact design
• Option of connecting an intercooler
• High efficiency
• Long serviceability and maintenance-free operating period

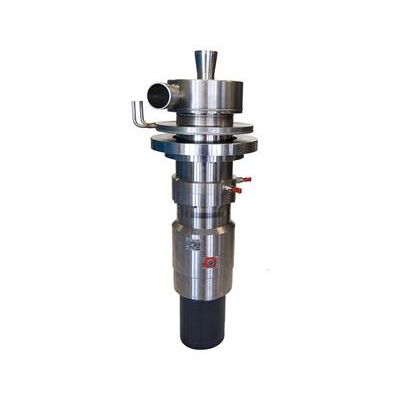

PBS centrifugal pumps are primarly designed for transporting liquefied inert gas (helium, nitrogen, argon, air, etc.) to a cryogenic device.

The flow units are always designed individually based on parameters specified by the customer.

The pump is designed modularly with two lines of standardized casings for different working media parameters and impeller sizes. The pump is driven byan electric engine defined bythe customer.

• Technical parameters: Values
• Volumetric flow rate: 50 - 500 g/s
• Impeller diameter: 40 - 110 mm
• Min. inlet pressure: 0,1 MPa
• Min. inlet tempera: 3 K
• Max. revolutions per minute: 45 000 min -1

Design according to customer requirements

The parameters of PBS cryogenic pumps are always adapted to specific customer requirements. PBS cryogenic pumps have been used primarily in research institutions in Europe and the US.

Various working gases

PBS cryogenic compressors are used in research and industry for the transport of liquefied helium, nitrogen, argon, etc.
