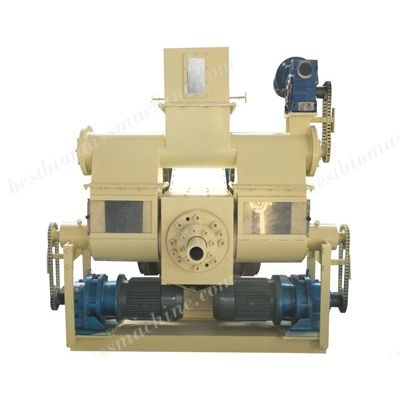

ABC Machinery - Punching Briquetting Machine
FromABC Machinery
The punching briquetting machine is one type of biomass briquette machines, which can produce different sizes of cylindrical biomass briquettes. Compared with screw briquette machine, punching briquetting press adopts the working principle of mechanical stamping, which gives great pressure to the raw materials and helps to shape high-density briquettes. Our company introduces foreign technology to design, improves and produces the high-quality punching briquette press. It is pelleting and briquetting all-in-one machine. To produce both biomass pellets and briquettes, it only needs to change the extrusion mold.
Most popular related searches
briquetting system
biomass briquetting
air cooling system
high-density briquetting
biomass briquetting press
briquetting
control cabinet
briquetting press
cooling system
pelletizer
| Main Parts | Specifications | Capacity | Density | Main engine power | Weight | Dimensions | Operator | Area |
| Briquette machine, Feeder, Electric control cabinet | Diameter 8mm-22mm pellets; Diameter 30-70mm briquettes | 0.8-1.2 t/h | 1000-1300kg/m3 | 45KW | 7000kg | Main engine 3.4mX2mX1.8m; Electric control cabinet 1.2mX0.6mX1.2m | 2 | About 80 square meters |
- Punching briquette machine can produce not only biomass briquettes but also pellets.
- The raw materials are forced into punching briquetting machine, which can be regarded as a prepressing to the materials, and the pre-pressed materials will be pressed by the punching briquette machine again. So after the above process, the products have even high density.
- Our company is the only one to produce punching briquette press saving energy up to 50% in our country.
- The machinery oil heat exchange system, dusty system, and air cooling system guarantee the punching briquette machine to work continuously.
- Briquettes or pellets produced by punching briquette machine have the highest density, lowest production costs.
