Geonor - Model M-605 Series -Push-in Vibrating Wire Piezometer
New type, simplified, more robust. For pressing down, can be used directly without pre-drilling. Made for 1" water pipes. Quick to install in soft ground. Short response time. Accuracy better than 0.5% of full scale. Measuring range 2 to 6 bar.
- Installation in soft soils or loose soils by "push-in" penetration Short installation time compared to drilling and sealing boreholes Proven long-term stability in harsh underground environments Complete digital sensor, no analog low voltage signals
- Galvanically isolated from drill rods using non-metallic adapter Self-sealing eliminates need to seal borehole with bentonite pellets or chips.

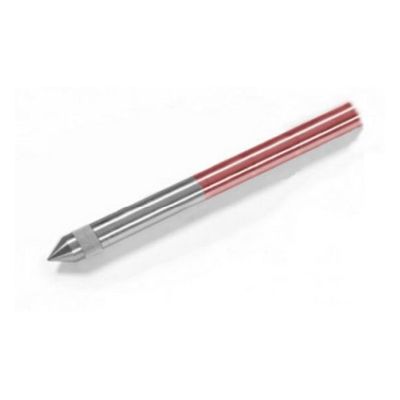

The Geonor M-605 series piezometers are vibrating wire sensors which are installed by pushing into soft and loose soils without having to drill a borehole.
As with all other Geonor vibrating wire piezometers, the M-605 series offer the maximum reliability available for continuous pore water pressure or ground water level measurements. Geonor`s unique design combined with continued technical improvements has made the vibrating wire sensor the most reliable equipment available, whenever accuracy and long term stability are of vital importance.
Accuracies better than 0.5% of full scale have in effect been fully documented by performance surveys carried out by the Norwegian Geotechnical Institute for more than 25 years.
Comprehensive experience combined with continuous innovation are the key to the high performance of Geonor`s piezometer. An example of this is the unique Geonor twinmagnet system which gives both faster and more consistent readings than "pluck and read" vibrating wire piezometers.
