IPEX Blue Brute - Model CIOD -PVC Fittings
Blue Brute systems are immune to corrosion from aggressive soils and galvanic action.
- A thicker bell that results in a more robust fitting.
- Fittings labeled with the O.D. for easy identification and restraint selection.
- CIOD, IPS and Nitrile Gasket Options
Blue Brute fittings are injection molded and are even tougher than the pipe. Injection molded Blue Brute fittings have a wall thickness 125% larger than SDR18 pipe, and custom-made fabricated fittings are wrapped with a tough layer of fiberglass for extra protection.
All Blue Brute fittings are shipped with standard gaskets that accept cast-iron-sized PVC pipe. Transition gaskets for IPS-sized pipe are an option for all sizes. For applications where fittings must be buried in soil with hydrocarbon contamination, Nitrile gaskets are available.

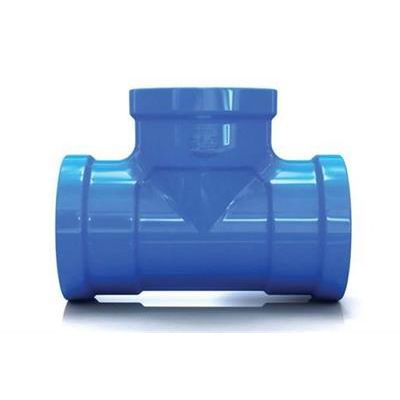

Blue Brute® Moulded PVC Fittings (CIOD)
- 235 psi (1620 kPa)
- 4 - 12" (100 - 300 mm)
CSA B137.2 certified
- AWWA C900
- FM 1612 approved
- UL 1285 Listed
- NSF Std. 61 certified
- BNQ NQ 3624-250*
Municipal transmission mains
- Municipal distribution mains
- Sewer forcemains
- Fire lines
- Industrial process lines
- Irrigation piping
FABRICATED FITTINGS
Fabricated fittings shall be made from segments of AWWA C900 PVC pipe. Segments are bonded together and may be over-wrapped with fibreglass-reinforced polyester. The pressure class must match the pipe. The fittings must meet the requirements of CSA B137.3.
