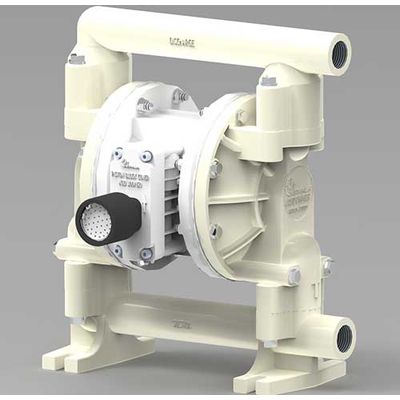

Nirmala - Model 300 -PVDF AODD Pump
Nirmala pumps and equipments manufactures PVDF aodd pumps which are similar to pp aodd pumps but its parts are constructed from PVDF. Our high quality and specially designed pvdf aodd pumps can be used in most chemicals and solvents. Moreover, it also has high thermal stability as pvdf gives mechanical strength at elevated temperatures.
Most popular related searches
air-operated diaphragm pump
materials performance monitoring
air intake
diaphragm pump
air diaphragm pump
material testing
pump system
diaphragm air pump
suction pump
brominator
- Pump Model : 300 PVDF AOD
- QUANTITY: 1
- Max. Capacity: 105 LPM
- APPLICATIONS: Bromine , High Temperature Abrasives Application
- Liquid Inlet / Outlet: 1”
- Air Pressure: 8-8.6 bar
- Air Inlet: ¼” (6.35mm)
- Make: “NIRMALA” Make
- Type: Air Operated Diaphragm Pump
- Suction Size : 1”
- Discharge Size : 1”
- Flange Connection: BSP Threaded/Flange as per ASA-150
- Diaphragm: PTFE Diaphragm
- NRV Ball: PTFE Ball
- Pump Weight: 9.5 Kg
