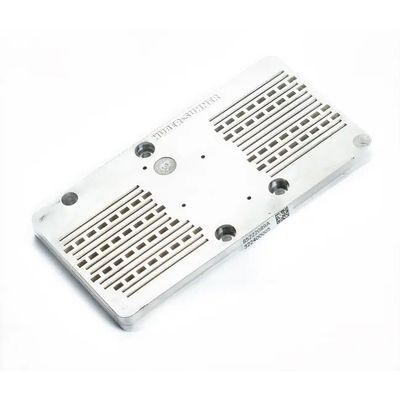

Huber+Suhne ADAS - Model 76 - 81GHz -Radar Antenna
FromHuber+Suhner AG
Key features: 4TX / 4RX channels covering the full automotive 77GHz radar band (76-81GHz). Compact port area of 125 mm2. Proprietary interface for direct RF coupling to the radar MMIC.
Most popular related searches
- Product code: 1377.99.0701
- Antenna family: 3D-WGA
How to use it
- Login for direct order
Electrical data
- Operating frequency: 76 GHz ... 81GHz
- Boresight Gain: 15 dBi
- Elevation: 10 dB-Power-Beamwidth 20 ° (per channel)
- Azimuth: 10 dB-Power-Beamwidth 140 ° (per channel)
- Side Lobe level: < -20 dB
- Reflection coefficient: < -10 dB
- Isolation for RX to TX (incl. assembly tolerances up to 400µm): > 30 dB
- Isolation for RX to RX (incl. assembly tolerances up to 400µm): > 25 dB
- Isolation for TX to TX (incl. assembly tolerances up to 400µm): > 28 dB
Mechanical data
- Weight: 23.8 g
- Dimensions: 7.1 mm x 80.3 mm x 43 mm (Height x Width x Depth)
