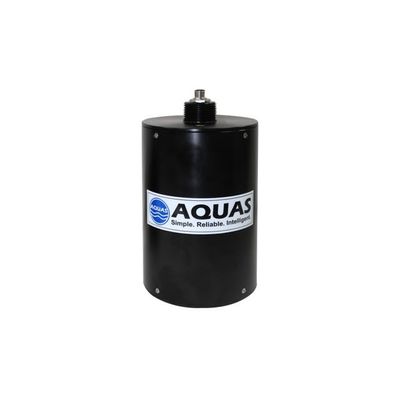

Aquas - Model SMR63 Series -Radar Flow Velocity Meter
FromAquas Inc.
The Radar Flow Velocity is connected directly via RS485 communication interface, providing simple, reliable, cost-saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. Housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, the transmitter is ideally used in water/wastewater industry.
Most popular related searches
flow velocity
flow radar velocity
velocity meter
hydrostatic level sensor
flow meter
level monitoring
water monitoring method
remote monitoring
wastewater industry
surface water
- All-in-One Compact Housing, Built-in Transmitter and Sensors
- Robust IP68 Water Submersible Protection
- Plug & Play, On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- 1500 N Tensile Strength Kevlar Reinforced Cable
- Surge Protection for Power and RS485 Communication
- RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Surcharge Hydrostatic Level Sensor, Continue to Provide Uninterruped Level Management
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI
- Built-in tilt sensor, Auto Angle Compensation
- Not effected by Temperature, Rain, Snowfall, Turbidity, Suspended Solids, Vapor, Steam and Sand Storm
- Onboard Memory Allowing Users Easily Calibrate and Configure Sensor at Lab and Distribute to Various Fields Sites
- Software Tool for Data Monitoring, Calibration , Configuration and Diagnosis
- Measurement method: Radar
- Type: 24 GHz (K-Band)
- Frequency: 12° Azimuth X 24° Elevation
- Max. Measurement Distance: 20 m
- Measurement range: -15 m/s~15 m/s, bi-directional
- Accuracy: ±1% of reading
- Resolution: 0.1 mm/s
- Direction: +/-
- Min. wave height: 1 mm
- Response time: 15 secs
- Level:
- Measurement method: Radar
- Frequency: 64 GHz
- Radar angle: 8°
- Measurement range: SMR63-1: 0~7 m; SMR63-2: 0~40 m (optional)
- Accuracy: SMR63-1: ±2 mm; SMR63-2: ±1 cm
- Resolution: 0.1 mm
- Response time: 3 secs
- Operating temperature: -20~60 °C
- Housing: POM
- Dimensions: Φ 115 (W)X218(H) mm
- Weight:
- approx: 2.7 Kg
- cable: 80 g/m
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps,8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 9~24 V DC ±10%, 100 mA
- Protection: polarity, overload, short circuit
- Safety: CE, FCC
Typical Applications
Stormwater, surface water, wastewater
Measurement Method
The sensor combines proven radar measurement technology with state-of-the-art spectral signal processing technology to provide an reliable and accurate way to measure velocity of flow.
