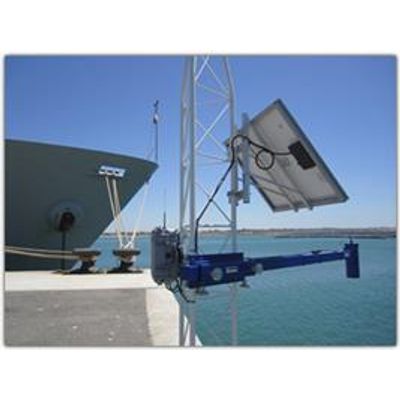

Geonica - Model DataMar-2000C -Radar Tide Gauge
The new model DATAMAR-2000C RADAR TIDE GAUGE designed by GEONICA, based on the latest electronic technology, is the ideal solution for measuring, recording and transmitting tide level data, not only due to its exceptional features and advanced technical characteristics for tidal networks, but also due to its great versatility and low cost.
The DATAMAR 2000C Tide Gauge is exclusively composed by two main parts, which are as follows:
-
The water level sensor based on RADAR (microwave) technology at 26 GHz.
-
The Model 2000C Data Acquisition and Transmission Unit.
DATAMAR is a compact, autonomous system, powered by internal batteries, rechargeable via solar panel or by connection to the mains , which does not require the use of a computer or local PC, as it already has all the necessary elements to carry out the sampling of the measured signal, the digitalization of this signal, the recording of the data in its own internal memory of 64Mbytes, as well as the elements required to transmit the data in real or differed time to the Port Authority, or to one or more Central Receiving Stations.
The DATAMAR Tidal Station is a fully programmable system (both locally and remotely), with capacity for level sampling every second, which also enables the connection of additional meteorological and environmental sensors, for the measurement of wind speed and direction, temperature and relative humidity of air, atmospheric pressure, visibility, water temperature, etc.
In addition, DATAMAR Tide Gauge is equipped for the connection of one or more colour Digital cameras, to capture and transmit still images of the port area, in sequential mode.
Due to all these varied features as regards autonomy, low consumption, multi-functionality, compact design and low cost, the DATAMAR Tide Gauge is the best and most economical choice on the market.
