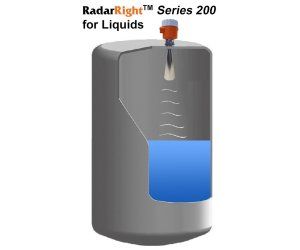

RadarRight - Model Series 200 -Non-Contact, Radar Level Sensor for Liquids
The RadarRight radar level sensor emits a microwave pulse from its antenna, which travels at the speed of light to the surface of the medium below. The time-of-flight of the pulse and its reflection back to the instrument location is directly related to the empty distance in the vessel and the material level. The output from the electronics is continuously updated as the level of the material surface changes.
Most popular related searches
non-contact radar level sensor
radar level sensor
radar liquid level sensor
non-contact liquid level sensor
non-contact level sensor
level sensor
liquid level sensor
non-contact level monitoring
radar sensor
level monitoring system
- Non-contact level measurement solution...nothing to "touch" your process
- Easy set-up / configuration with LCD push button display module (included)
- Real-time continuous output provides immediate level measurements.
- No moving parts to wear which leads to long operational life and low maintenance.
- Proven microwave "pulse" technology for dependable measurements
- Small beam angle to centralize energy for high accuracy and reliability with materials having a wide range of characteristics
- Small "dead band" ("blanking zone") for enabling full tank measurement in small vessels
- Advanced microprocessor and unique echo processing technology, enables reliable operation under various process applications
- "Pulse" technology results in extremely low emission power; suitability for various metal or nonmetal vessels; and is harmless towards the environment and human beings
- Can be provided with a variety of antennas and process connections - Small antenna sizes (diameters) for easy mounting
- Suitable for many liquid applications in vessels with heights up to 98.5 ft. (30m) with 4 inch dia. antenna
- Series 400 for powder / bulk solids applications is also available...Click Here
Excellent when application requires that nothing contacts or interferes with the process.
Strong performance for liquids in vessels up to 98.5 ft. (30m) tall with 4 inch (98mm) diameter horn.
Provides measurements in storage tanks & process tanks under process conditions such as: applications with low or non-corrosive media, light surface foam or agitation, condensation or vapor, etc.
Can be used in a stilling well…ideal for foamy conditions.
Typical applications include, but are not limited to:
- Liquids
- Water
- Wastewater
- Diluted Chemicals
- Petroleum
- And more!
- 3 Inch (78mm) Diameter, SS Antenna - or vessels up to 49.2 ft. (15m) tall
- 4 inch (98mm) Diameter, SS Antenna - or vessels up to 98.5 ft. (30m) tall
Part #, Description
- 16-3070, Flange, “K” Style, Flat, Aluminum, 1-1/2 NPT (suitable for 3” and 4” antennas)
- 16-3072, Flange, “K” Style, 10 Degree, Aluminum, 1-1/2 NPT (suitable for 3” and 4” antennas)
- 16-3064, Flange, 4” ANSI, Powder Coated Steel, 1-1/2 NPT (suitable for 3" and 4” antennas)
- 16-3094, Flange, 4” ANSI, 316SS, 1-1/2 NPT (suitable for 3” and 4” antennas)
- 1-2400, Spanner Wrench For Cover Removal / Tighten
- R0514-22001, Belden 9322, Cable, Instrumentation, 2-Lead, Shielded (Notes 8 and 9)
- R0514-18001, Cable, Instrumentation, 4-Lead, Shielded, 18 AWG 4 (Notes 8 and 9)
- 17-8021, Power Supply, Universal AC to 24VDC 4 (Notes 9)
Note:
- 1 Consult Monitor Technologies factory for all applications prior to pricing and issuing quotation.
- 2 For use with HMI2 Operator Interface.
- 5 Flange accessories include a 1-1/2” NPT center hole for attaching to RadarRightTM units with 1-1/2” NPT
- threaded process connection.
- 8 Cable is not for plenum installations. Consult local electrical codes and verify compliance before installing.
- 9 Cable or power supply are not included. Must be ordered separately.
- Analog 4-20mA (two-wire, loop powered)
- “Smart” RS-485 / Modbus RTU Compatible (two-wire)
- LCD Push Button Display Module - included with all models (For use with Smart RS-485 / Modbus or 4-20mA Analog models)
- HMI2 Local Operator Interface Control Console - Optional (For use with Smart RS-485 / Modbus models only)
- Application: Liquids for Vessels up to 98.5 ft. (30m) High (with 4 inch diameter antenna)
- Max. Measurement Range:
- (With 3 Inch (78mm) Diameter Antenna: 49.2 ft (15m)
- (With 4 Inch (98mm) Diameter Antenna: 98.5 ft (30m)
- Measurement Accuracy: ±0.12in (±3mm)
- Ambient Operating Temp.: -40~150° F (-40~65° C)
- Process Temperature: -40~266° F (-40~130° C)
- Process Pressure: -14.5 to 150 psi (-1 to 10 bar)
- Dead Band: 12” (30.48cm) / Factory Set
- 3dB Beam Angle:
- 3” (78mm) Dia. Antenna: 12°
- 4” (98mm) Dia. Antenna: 8°
- Weight (Approx.) 4.5 lbs [2kg] without flange
- Frequency Range: 26GHz
- Signal Output: Smart RS-485 / Modbus RTU)Compatible (2-wire);
- 4-20mA Analog (2-wire, loop powered)
- Power: 24VDC (16~26VDC)
- LCD: Standard
- Housing: Die cast aluminum, ENCLOSURE TYPE 4X, IP66
- Housing Finish: Powder Coating
- Process Connection: 1-1/2” NPT Thread
- Flange Accessories: K-Flange; 4” ANSI
- Antenna(s): 3" (78mm) Dia., 4” (98mm) Dia. - Stainless Steel
- Approvals: CE Mark; TUV Rheinland US/C, Ordinary Locations
