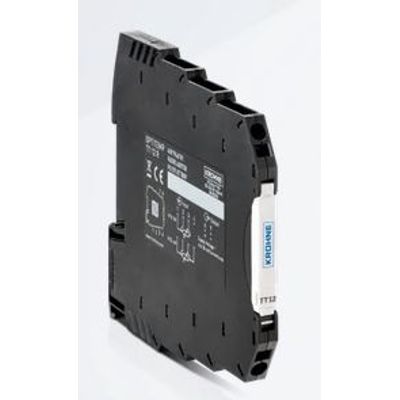

OPTITEMP - Model TT 12 R -Rail-Mounted Temperature Transmitter with RTD Input
The OPTITEMP TT 12 R is a universal programmable 2-wire rail-mounted temperature transmitter for Pt100 and Pt1000 RTD elements. The cost-effective transmitter offers reliable temperature measurement in all basic applications and is particularly suitable for use in the food and beverage industry and in HVAC installations. The OPTITEMP TT 12 R features an extremely compact design with a 6.5 mm width. There are different snap-in terminals available for the OPTITEMP TT 12 R that allow ease of installation. Thanks to its rugged design, the temperature transmitter withstands external influences such as shocks and vibrations up to 5 g.
Rail-mounted temperature transmitter with RTD input, spring terminal and compact 6 mm design
- Input: 1 x Pt100, 1 x Pt1000, 2-, 3- or 4-wire
- Output: 2-wire, 4…20 mA
- Programmable via the OPTICHECK Temperature Mobile app using NFC
- Accuracy: ±0.15%
When it comes to transmitter configuration, there is no need for expensive configuration tools or wired workstations. The rail-mounted transmitter is easily configured via NFC with any smartphone or tablet computer using the OPTICHECK Temperature Mobile app. The temperature transmitter provides a temperature linear current output (4…20 mA). A dedicated head-mounted version of the transmitter is available with the OPTITEMP TT 12 C.
- Very small form factor: Only 6.5 mm width for space-saving installation on all rails
- Long-term stability reduces the need for calibration: Minimal drift of only ±0.05°C or ±0.05% of span/year
- User-friendly transmitter configuration via NFC using the OPTICHECK Temperature Mobile App: no supply voltage and cables needed
- Robust design: Suitable for harsh conditions up to 5 gr vibrations, 95% RH (non-condensing)
- Spring terminal for quick transmitter wiring
General
- For cost-effective temperature measurement with RTD temperature assemblies and sensors in food and other process applications as well as in HVAC systems
Depending on selected device configuration
General information
- Product type Temperature transmitter
- Product family name OPTITEMP
- Product positioning With RTD input and extremely compact design
- Transmitter programmable Yes
- Transmitter input Resistance (RTD)
- Galvanic isolation No
- Power supply (VDC) 6...32 VDC
- RTD input Pt100, Pt1000
- RTD input / wiring 2-wire, 3-wire, 4-wire
- Configuration method NFC (Near Field Communication)
- Transmitter mounting Rail-mounted
- Diagnostic functions Sensor break detection, Sensor short circuit detection, Signal filtering function
Approvals/Standards
- NAMUR compliance NE 43
Communication
- Analogue outputs 4…20 mA
