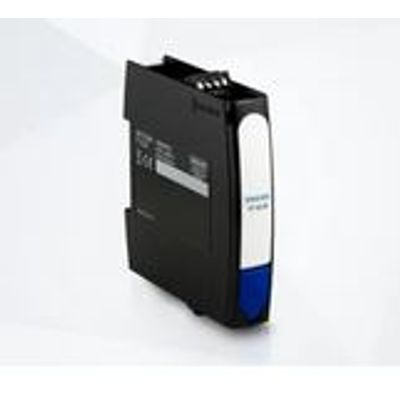

OPTITEMP - Model TT 53 R -Rail-Mounted Temperature Transmitter with Universal Input
The OPTITEMP TT 53 R is a universal, programmable, 2-wire rail-mounted temperature transmitter. The galvanically isolated transmitter works with RTD elements, thermocouple (TC) elements or other inputs (mV and Ω). It supports wireless Near Field Communication (NFC) as well as Bluetooth® communication. The OPTITEMP TT 53 R transmitter can thus be remotely configured and monitored using mobile devices with the OPTICHECK Temperature Mobile app installed.
Rail-mounted temperature transmitter with universal input, galvanic isolation, HART® and wireless communication
- Input: RTD, TC, mV, Ω
- Output: 2-wire, 4…20 mA/HART®7
- Programmable via PC, HART® handheld or the OPTICHECK Temperature Mobile app using Bluetooth® or NFC
- Accuracy: ±0.08%
Featuring HART®7 communication, the transmitter also offers extended diagnostic information (for example device error, sensor and wiring conditions). In addition, it is able to measure the actual supply voltage as well as the ambient temperature while making them available via HART®. The maximum values are stored internally. The robust design of the OPTITEMP TT 53 R makes the transmitter highly reliable even under harsh environmental conditions. It is available for use in hazardous areas. The temperature transmitter is designed to be mounted on a DIN rail. A dedicated head-mounted version is available with the OPTITEMP TT 53 C.
- Completely universal digital device
- Fast step response time and high accuracy over transmitter lifetime
- Wireless communication:
- Via Near Field Communication (NFC): Quick configuration of the transmitter in combination with the user-friendly OPTICHECK Temperature Mobile app; no power supply and wiring required
- Via Bluetooth®: Quick configuration and monitoring of the transmitter in combination with the OPTITEMP TT-CON BT configuration kit and the OPTICHECK Temperature Mobile app
- Configuration also possible via PC/software (ConSoft™) without external power supply
- Enhanced diagnostics (NAMUR NE 107), incl. sensor break monitoring, error correction etc.
- High degree of functionality and features (incl. runtime counter, output simulation, ambient temperature log etc.)
- Rugged design: vibration-resistant up to 10 g
- Designed for installation on a rail (in accordance with DIN EN 60715)
Depending on selected device configuration
General information
- Product type Temperature transmitter
- Product family name OPTITEMP
- Product positioning With universal input, galvanic isolation, HART® and wireless communication
- Product variants
- Standard: OPTITEMP TT 53 R
- EX: OPTITEMP TT 53 R Ex
- Transmitter programmable Yes
- Transmitter input Potentiometer (Ω), Resistance (RTD), Thermocouple (TC), Voltage (mV)
- Galvanic isolation Yes
- Galvanic isolation (VAC) 1500 VAC
- Galvanic isolation (VAC) 1500 VAC
- Power supply (VDC) 8.5…36 VDC
- 8.5…30 VDC (Ex)
- RTD input Cu10, Ni100, Ni1000, Ni120, Ni50, Pt100, Pt1000, Pt50
- Potentiometer input (Ω) 100…10000 Ω
- Voltage input (mV) -10…+1000 mV
- RTD input / wiring 2-wire, 3-wire, 4-wire
- TC Input B, C, D, E, J, K, N, R, S, T
- Configuration method Bluetooth®, HART handheld, NFC (Near Field Communication), PC/ConSoft software
- Transmitter mounting Rail-mounted
- Diagnostic functions Sensor break detection, Sensor short circuit detection, Signal filtering function
Approvals/Standards
- NAMUR compliance NE 107, NE 43, NE 53, NE 89
- Certificates/Approvals Ex ATEX, IECEx
Communication
- Digital outputs HART®
- Analogue outputs 20…4 mA, 4…20 mA
