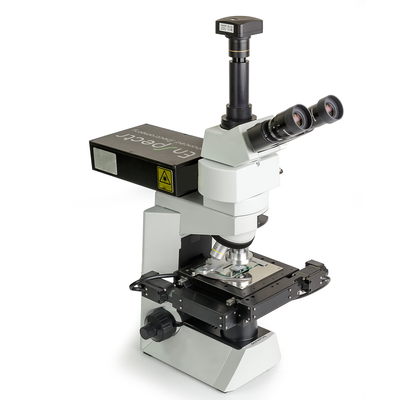

Enhanced - Model M785 -Raman Microscope

Raman Microscope M785 is an optical spectral instrument with specialized software for getting enlarged images of small details of sample structures, and also for measurement of spectral characteristics of samples by acquiring Raman scattering and photoluminescence. The functions of RamMics® include spectral identification and analysis of microparticles composition and of other micro structured objects and substances.

The optical scheme of Raman Microscope consists of a microscope module and a spectral analyzer module (EnSpectr R785®) connected with a beam splitter module. Visual study of object is done in standard regime of microscope with the use of oculars and/or video camera. According to the instrument configuration, any optical scheme of object illumination (reflection or transmission) can be used.

EnSpectr Professional Software automatically manages all the parts involved into spectral signal measurement process. Besides that, mathematical block of the program automatically compares acquired spectrum with reference substance spectra stored in a spectral database, and thus recognizes the acquired spectra.

• Chemical industry
• Pharmaceutics
• Forensics
• Identification of counterfeit products
• Customs control
• Higher education/Scientific research
