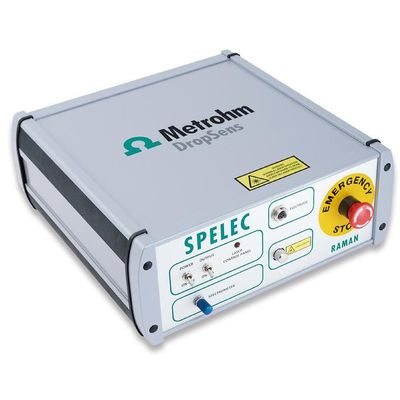

Metrohm - Model SPELEC - SPELECRAMAN -Raman Spectroelectrochemical Instrument

SHARE

SPELEC RAMAN is an instrument for performing spectroelectrochemical RAMAN measurements. It combines in only one box a LASER Class 3B (785 nm), a Bipotentiostat/Galvanostat and a spectrometer (wavelength range 785 – 1010 nm and Raman shift 0-2850 cm-1) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.

Most popular related searches

fiber optic connector

potentiostat galvanostat

potentiostat/galvanostat

spectrometer detector

electrochemistry

Operating modes: Bipotentiostat; Potentiostat; Galvanostat
PC interface: USB
Power: 5 V DC
Potential range in volt: ±4 V
Maximum current in Ampère: ±40 mA
Number of current ranges: 8
Number of current ranges remarks: ±1 nA to ±10 mA
Number of potential ranges (galvanostat): 2
Number of potential ranges remarks (galvanostat): ±100 mV to ±1 V
Multichannel instrument: NO
Maximum number of channels: 1
Maximum number of WE sharing AUX and REF: 2
Potential accuracy: ±0.2 %
Current accuracy: ≤0.5 % of current range at 100 nA to 10 mA
Potential resolution: 1 mV
Current resolution: 011 % of current output range
Measured potential resolution: 0.012 % of potential range
Measured current resolution: 0.025 % of current range (1 pA on lowest current range)
Spectrometer (SPM) Detector: 2D CDD Array, Back thinned TE Cooled
SPM Pixels: 1044 x 64
SPM Wavelength range: 785 - 1010 nm
SPM Optical resolution: 7 – 11 cm-1
SPM Signal-to-noise ratio: 1000 : 1 (at full signal)
SPM A/D resolution: 18 bit
SPM Dynamic range: 85000 : 1
SPM Integration time: 8 ms to 60 min
SPM Stray light: < 0.08 % at 600 nm; 0.4 % at 435 nm
SPM Fiber optic connector: SMA 905
Light Source (LS) wavelength range: 785 ± 1 nm
LS Stability: ± 0.1 nm (-20 to 55 °C)
LS Fiber optic connector: FC
Dimensions: 25 X 24 X 11 cm
Weight of the instrument in kg: 3.4
Spectral line width: <0.2 nm FWHM
Optical power output: 500 mW (375 mW typical)
Output power stability: ± 1 %
Raman shift: 0 - 2850 cm-1
