Accurate profiling of atmospheric temperature and humidity is a prerequisite for many meteorological studies, including nowcasting, model evaluation, and assimilation. Unfortunately, existing instrumentation lacks either the temporal or vertical resolution required for such application. To fill this gap, Raymetrics S.A., a global leader in lidar (lidar detection and ranging) technology, is developing a new state-of-the-art temperature and humidity lidar instrument. Based on the lidar technique the new product can provide measurements of temperature and humidity from near the ground up to few kilometers, with spatial resolution down to few meters and time resolution of the order of couple of minutes. The measurements are based on accurate observation of the spectral signature of atmospheric molecules and their changes with ambient temperature. ISO 9001:2015 certified.
The new system integrates findings from leading research institutes,into robust and reliable lidar that can cover requirements for a wide range of application.
The system can be optimized either for Planetary Boundary Layer (PBL) monitoring, or observation in the middle and upper troposphere. The interpretations of the data are done using proprietary algorithms that exploit the full information content on the measurements, delivering consistently better results than even state-of-the-art retrieval techniques. Raymetrics will unveil the new system for the first time in the Meteorological Technology World Expo 2018.
- Accurate profiling of atmospheric temperature and humidity.

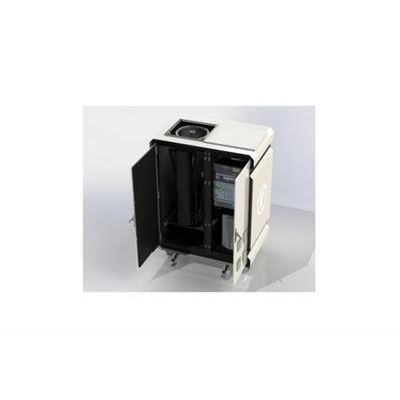

- THRRL-D400 Temperature and Humidity Lidar
- Laser type: Nd:YAG seeded
- Emission wavelength: 355nm
