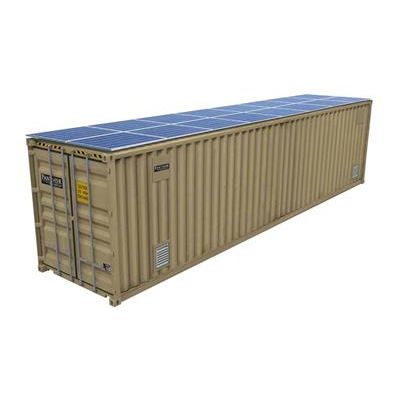

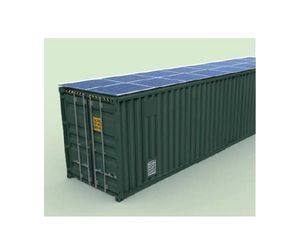

Panther Deploy - Re-Deployable Off-Grid Wastewater Treatment System
Ecoprocess Engineering designs, manufactures and supplies the Panther Deploy containerised wastewater treatment plant with optional Lynx off-grid power solution – offering you: Complete off-grid capability. Strong and secure steel construction. Speed and ease of deployment. Durable and easily maintained plant. Plug and play set up. Total turnkey solution.
Panther Deploy is specifically designed for sites lacking local infrastructure where safe sanitation, robustness and speed of set up are paramount. Applications include:
- Workers Accommodation
- Military Uses
- Aid Camps
- Remote Locations

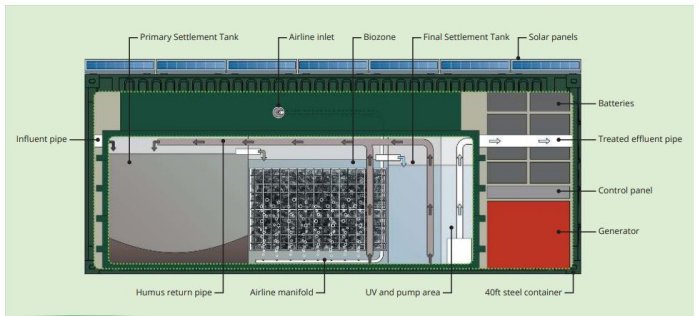

The Panther Deploy utilises a robust natural process which, coupled with advanced self-regulating aeration technology, permits variable flows and loads to be treated efficiently. The three-stage plant is entirely containerised, incorporating: primary settlement, biological treatment and final settlement. The Lynx power solution combines a photo voltaic array, battery storage and high- efficiency generator, and is custom designed to meet the power demands of the Panther Deploy – allowing reliable autonomous off -grid operation.
The Panther Deploy utilises a robust natural process which, coupled with advanced selfregulating aeration technology, permits variable flows and loads to be treated efficiently. The three-stage plant is entirely containerised, incorporating: primary settlement, biological treatment and final settlement. The Lynx power solution combines a photo voltaic array, battery storage and high efficiency generator, and is custom designed to meet the power demands of the Panther Deploy – allowing reliable autonomous off -grid operation.
- Standard size shipping container
- Readily scalable
- Low flow and load capability
- Robust natural process
- No complex moving parts
- Underground option
- Plug and play set up
- No specialist staff needed
- Minimal spares list
- Easily maintained
- Lynx off-grid power solution
- Steel external construction
- Customised paint finish option
- Speed and ease of transportation
- Phased and reactive site planning
- Highly fluctuating usage patterns accommodated
- Noise and odour free, no chemicals required
- High reliability and longevity of plant
- Minimal visual impact/hurricane resistant
- Easy installation and commissioning
- Low operational complexity and cost
- Speed of repair and low downtime
- No specialist technician required
- Widest choice of operation locations
- Strong and secure
- Choice of aesthetic impact
The Panther Deploy process is designed in accordance with the requirements of BS 6297 and certified to BSEN 12566 – Pt3. It produces an effluent quality suitable for irrigation with an output of 20mg/L B.O.D.: 30mg/L Suspended solids: 20mg/L NH4 or better where specified.
- ‘Off-grid’ solar option
- UV disinfection
- Pumped discharge
- Grease traps
- Remote telemetry monitoring
