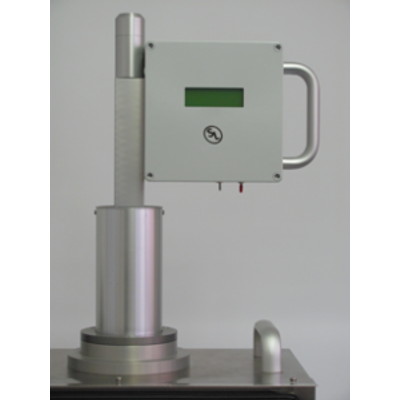

Leckel - Model ORIFLOW -Reference Flowmeter for Samplers

SHARE

Reference flowmeter for samplers. Accumulator-operated with protection against deep-discharging, operating period 8h, ready for operating also during charging.

Most popular related searches
restriction orifice union
flow meter
  • Display of operating- l/min resp. operating-m³/h and standard-m³/h, deviation of the candidate sampler’s flow rate from 2,3m³/h in percent, ambient pressure in mbar, ambient temperature in °C, pressure drop across the orifice plate in mbar and state of charging in percent
  • Measuring ranges: 13,3 – 53,3 l/min resp. 0,8 – 3,2 m³/h
    or 30,0 – 70,0 l/minresp. 1,8 – 4,2 m³/h
  • Measuring uncertainty: + < 1%
  • DAKKS / DKD certificate on request
  • Directly to put on SEQ47/50
  • Adapter for other instruments on request
  • Android App on request
