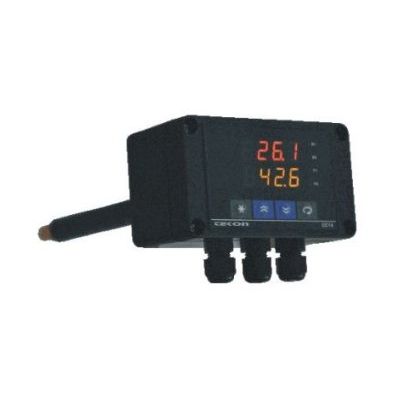

Tekon - Model CC14 -Relative Humidity And Temperature Controllers

Replaceable Sensor. Replaceable Sensor Filter. Calibrated Single Chip Temp + Humidity Sensor. Approved Capacitive Sensor Technology. High Output Accuracy. 2X4 Digit Numeric Display. 4 Led Indicator. 2 Analog Output (0/4-20mA, 0/2-1OV). 2 Programmable Semi Conductor Relay RS485 Communication Unit. 100-240Vac Universal or 24Vac/dc Power Supply. -40°C...+120°C Sensor Working Temperature Range. Isolation Between Input/Output and Power Supply Units. Temperature, Relative-Humidity , Dew Point Measure and Control. Calibration Ability of Temp., Relative Humidity Selection from two points. Able to Set Sensor Heating Function. Sensor Error Detection and Routing. 4 Different Relay Function for Control or Alarming. Standard MODBUS RTU Communication Protocol. Adjustable Scale for Analog Output. 1sec Sampling and 100ms Control Period. IP65 Protection Class (Except Sensor). 3 Years Warranty for Manufacturing Errors.
