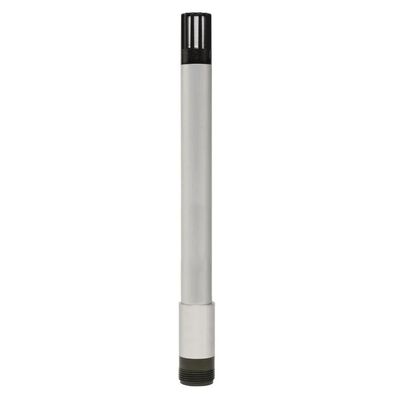

Met One - Model 083F / 085A -Relative Humidity / Temperature Sensor
The 083F Relative Humidity Sensor is a highly sensitive and stable temperature measurement tool that provides outstanding accuracy. It is reliable in the full range of relative humidity conditions, from 0-100%, performing equally well in meteorological, industrial, laboratory and other demanding settings. Model 085A is a combined relative humidity/temperature sensor. Both sensors can be used with a variety of radiation shields. The 083F/085A Relative Humidity Sensor measures variance in the capacitance change of a one-micron thick dielectric polymer layer. This film absorbs water molecules through a metal electrode and causes capacitance change proportional to relative humidity. The thin polymer layer reacts very quickly, providing up to 90% of the final value of relative humidity in fewer than five seconds. The sensor’s response is essentially linear, with small hysteresis, and negligible temperature dependence.
- All solid-state construction, digital electronics
- Fast response of less than 5 seconds to 90% of final value
- Low power consumption of 4 mA at 12 VDC
- Easily cleaned using distilled water
- 0-1V output for 0-100% RH
- Will operate from a 12 VDC battery
Power Input
- Power: 4 mA at 12 VDC (10-14 VDC)
Relative Humidity
- Sensing Element: Thin film polymer capacitor
- Range: 0 - 100% relative humidity
- Temperature Operation Range: -50°C to +50°C (-58°F to 122°F)
- Response Time: 10 sec. with 2 m/s aspiration
- Temperature Coefficient: 0.04% RH/°C
- Accuracy: ±2.0% from 0 – 100% humidity
- Output: 0 to 1 VDC – Standard (0 to 5.0 VDC Optional)
Temperature Temperature
- Sensor: Thermistor (precision multi-element)
- Temperature Operation Range: -30°C to +50°C (-22°F to 122°F)
- Accuracy: ±.15°C (0.27°C)
- Output: Resistive
Physical
- Weight: 2.5 oz (70.9 g)
- Size: .75 in (19.05 mm) diameter, 7.5 in (190.5 mm) length
Ordering Information
- 083F-6: For use with the 076B Motor Aspirated Shield
- 083F-35: For use with the Naturally Aspirated Shield - Requires cable P/N 2348 (Specify Length ft/m)
- 085A-6: For use with the 076B Motor Aspirated Shield
- 085A-35: For use with the Naturally Aspirated Shield - Requires cable P/N 2348 (Specify Length ft/m)
Specifications are subject to change at any time.
