Enerac - Model 3000 -Reliable Data for Periodic Monitoring System

The 3000 analyzer meets the following EPA performance specifications:

• CTM-022 Test Method for NO, NO2, NOX
• Method 7E.5.1.1 Sample Conditioning

ENERAC 3000 analyzers have been successfully used for:

• Compliance Testing
• Title V Periodic Monitoring
• CAM/Plan Development
• Emissions Trading
• Quarterly Testing
• Energy Efficiency Programs
• Equipment Maintenance
• “Credible Defense” for ACE

ENERAC’s automatic/documented quality control features will reduce compliance risks, assure data accuracy, simplify operator training, increase productivity and reduce costs.

• Meets requirements of all EPA and state electrochemical sensor technology protocols: i.e. CTM-030.

The ENERAC 3000 portable emissions analyzer provides you with the most comprehensive package of capabilities in the industry.

Advanced SEM sensor technology provides the assured data accuracy required for a broad range of monitoring needs. Built-in “Quality Assurance” features document proper sensor and equipment performance before each test, which truly simplifies operator training.

Performance features include:

• Advanced SEM sensors (CTM-022 + CTM-030)
• Dual-range capability for CO—NO—SO2
• Battery-operated Sample Conditioning (Method 7E)

These features are backed by a comprehensive framework of supporting services, including:

• Comprehensive operator training
• Regulatory support and interface
• Protocol development
• Replacement units
• Remote two-way communication and support via modem
• Integrated data system with standard units
• Advanced Windows® based data management software

Quality Assurance:

1. Temperature Control NO Sensor: < 30º C to eliminate zero drift and the effects of sensor exposure.
2. Calibration Certification Protocol: Automatic printout of both auto zero and span calibration test results, including sensor diagnostics and filter operation.
3. Operational Flexibility: Unique, single, dual-range sensors: CO–NO–SO2.

Physical:

1. CASE: 18" x 13" x 6" Aluminum carrying case with lock. Weight: 22 lbs.
2. PROBE: 24"L. x 3/8"O.D. inconel probe with Hastelloy X sintered filter and 1/2" deflector mounted on permeation drier housing. Probe housing connects to instrument via a 10 ft. PTFE Teflon hose. Max. continuous temperature: 1800 deg. F. Max. sample dew point (past dryer) 50 deg. F. @ 500 cc/min. (Natural gas fuel @ 0% oxygen).

Electrical Power:

1. BATTERY: 6V rechargeable, sealed, lead-acid cell.
• Three hour continuous battery operation. Quick 6 hour recharge.
2. AC:120V/60 Hz and 220V/50Hz standard.
3. DC: 11-40 VDC/3A standard.

Display:
0.5" High by 24 Character single line LCD with backlight illumination and adjustable viewing angle.

Printer:
SEIKO 4", 40 char. per line thermal printer with form feed and line feed buttons and with end of paper override. Operates in any of four modes:

1. TEXT MODE: 25 line printout of instant values of all measured parameters and automatic printout of calibration checks. (Time req: 20 sec.)
2. PLOT MODE: Any one parameter vs. time plotted. Three ordinate scales: full, half, quarter. Time scale: Selectable, 1 sec/dot-1 min/dot in 1 sec/dot intervals.
3. EXTERNAL PRINT MODE: Prints messages sent via RS-232 port.

Storage:
Internal: Minimum 50 individually selectable buffers hold one complete set of measurements each in non-volatile memory. Buffer contents can be sent to printer or RS-232 port.

Communications:

• RS-232 PORT: RS-232c port (DTE or DCE), 1200 baud default, 300-9600 baud user selectable, half duplex, 1 start bit, 8 data bits, 1 stop bit, no parity.
• TELEPHONE PORT: Internal 1200 baud modem connects to a modular phone line for remote communication.
• SOFTWARE: ENERCOM™ for WINDOWS® software. 3.5" diskette, includes alarms, programming fuels, bar graphs, multiple line plots and cumulative plots of mass emission rates (lbs/hr; tons/yr).

Miscellaneous:

1. FUELS: 15 fuels (3 in foreground, 12 in background) are standard. Custom fuels available on request.
2. CO ALARM: Selectable 0-2000 PPM in 10 ppm steps.
3. COMBUSTIBLES IN ASH: Presettable 0-100% in 5% steps.
4. MESSAGES: User friendly diagnostic & help messages.
5. CALIBRATION: Auto gas span plus user selectable auto zero on start.

Operator Training & Certification:
SEM TM electrochemical portable instrumentation is an important, cost-effective method to acquire compliance-level emission data. To ensure proper implementation, the operator should be trained as to the instrument`s capabilities.

Remote Operation:
Two-way advanced communication and remote operation includes remote factory check and repair, and remote operation and reporting.

Upgradeability:
All ENERAC™ 3000 units can be expanded and upgraded at any time to meet your changing environmental requirements.

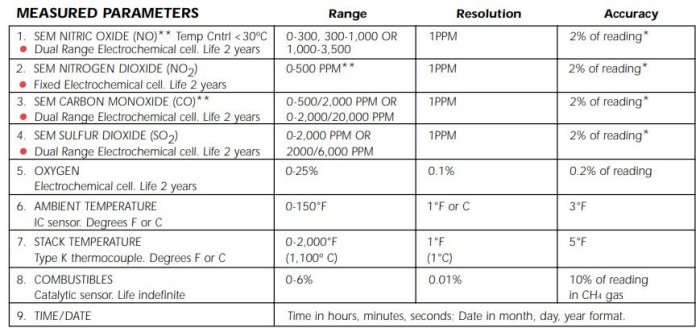

Advanced EPA reference method emissions analyzer using SEM electrochemical sensor technology to measure CO, NO, NO2, & SO2. Also measures Oxygen, Combustibles, Stack Temperature and Stack Draft. Emssions system includes unique permeation-drier sample conditioning.Enerac 3000 Product Image

Advanced SEM Sensors

• QA/PCM – Quality Assured Precision Control Modules
• QA/PCM – Quality Assured Interference Protection
• QA/CCP – Quality Assured Calibration Certification Protocol
• Only refurbished units available

The Enerac 3000 SEM provides facility operators a low cost, easy-to-implement capability to develop timely and representative data for CAAA requirements:

• NOx RACT
• Operating Permits
• CEMS Back-up
• Enhanced Monitoring
• Audits
• Emission Rates

Unique Features

Enhanced Integrated Sample Conditioning System
This is a unique battery operated permeation dryer conditioning system. It has been shown to remove excess water vapor without any loss to the nitrogen dioxide and sulfur dioxide components of the stack gases.

Electrochemical SEM(tm) Sensors
These are the most advanced electrochemical sensors specifically designed for emisisons measurements. SEM sensors are available for the measuremenst of nitric oxide, nitrogen dioxide, carbon monoxide and sulfur dioxide components of the stack gases.
