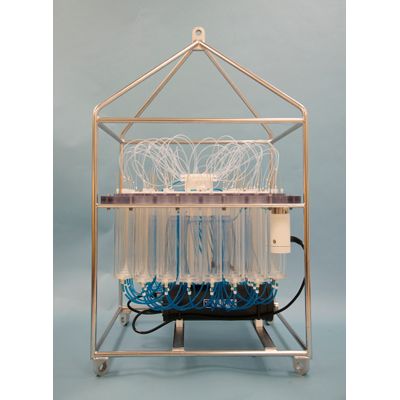

McLane - Model RAS -Remote Access Sampler
The Remote Access Sampler (RAS) is a deep water or coastal time series water sampler that collects samples for biological, dissolved major and minor nutrient, dissolved trace metal, or dissolved organic carbon analyses. The RAS sampler collects ambient water and suspended material in Tedlar® bags, isolating the samples for subsequent laboratory analysis. The RAS-500 collects 48 samples of 500ml each and the RAS-100 collects 48 samples of 100ml each, following a user defined sampling schedule. RAS systems can optionally be fitted with in-line pre-filters and an external temperature sensor. Deployment data with a report of sample event conditions is stored to non-volatile EEPROM.
Most popular related searches
organic carbon analyzer
organic carbon analysis
dissolved organic carbon
sample bag
carbon analysis
carbon analyzer
dissolved organics
laboratory analysis
sampling bag
inline filter
- NUMBER OF SAMPLES: 48 100 ml or 500 ml samples
- DEPTH: Maximum depth of 5500 m
- TEMPERATURE RATING: Temperature 0 to 35 °C
- MIN/MAX DEPLOYMENT TIME: 10min per sample/18 months
- PUMP FLOW RATE: 75ml/min fixed rate (+/- 3% error)
- POWER CONSUMPTION: RAS-500: 3.5 Ahr (1 year deployment)
- RAS-100: 3.1 Ahr (1 year deployment)
- SAMPLE BAG MATERIALS: 2 mm Tedlar® (clear), 4 mm Mylar laminated (opaque) or 4 mm Kynar (clear)
