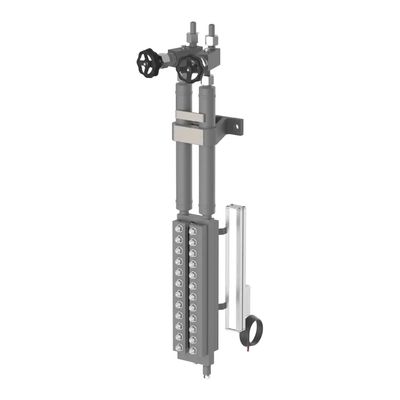

IGEMA - Model Type G -Remote Level Gauge

The remote level gauge type G can be used for every steam generator according to TRD 401 except continuous steam generators. The geodetic pressure difference of two water columns is transferred to a blue separating liquid in the remote level gauge. This liquid is not soluble in water and non-toxid. The height of the display column of liquid is the water level in the steam drum at a scale of 1: 1 or a reduced scale again. The product corresponds to the PED directive 2014/68/EU Art. 4 Abs 3 (Sound Engineering Practice). Applied rules as per TRD/AD2000 or ASME-Boilers.
