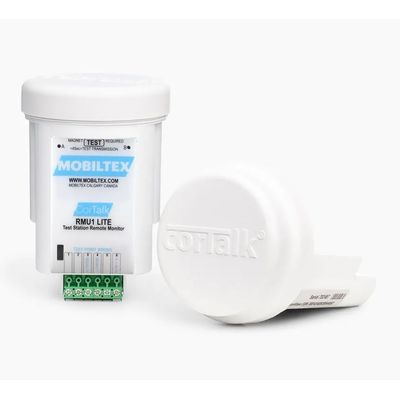

Mobiltex CorTalk - Model RMU1-LITE -Remote Monitoring Test Stations

High volume deployments within operational budgets are now possible

The CorTalk RMU1-LITE offers user-selectable intervals, greatly enhancing the amount of pipe-to-soil data that is automatically collected as compared to manually obtained annual pipe-to-soil potential readings. Pipeline operators can take advantage of this capability to collect multiple measurements throughout the year, providing a richer data set to understand seasonal variations or short-term operating irregularities that can negatively impact CP system performance. This flexibility also provides a measure of future-proofing since the RMU1-LITE will be able to meet regulatory requirements for more frequent data collection that may come into force.

The RMU1-LITE also has a unique feature that adds to it’s autonomy and reliability, it can collect separate pipe-to-soil potential measurements from two connected reference cells. This allows technicians to use our CorView Cloud Platform to remotely compare the results and validate whether the reference cells are functioning properly. During an interruption event, the device can also capture an instant-off potential measurement, meeting the data requirements for annual level of protection surveys and further reinforcing the operational insights provided by more granular measurements.

• Test Station: Pipe-to-Soil Monitoring + Instant-off Potential
• >10Yr Battery Runtime || Field Replaceable || Standard AA L91 Lithium
• Future-proofed CAT-M1 [LTE-M 4G/5G] Cellular Backhauls
• Future-proofed Satellite [Iridium & Globalstar] Backhaul
• Highest Lightning, Surge, Overvoltage Immunity || No Earth Ground Bond

• Fast, simple installation
• Engineered for affordable, high-volume deployment
• Instant-off potential measurements
• Remote dual-reference cell validation
• Global communication capabilities
• Built to withstand the toughest conditions
• Long-life battery

• The compact, weather-proof RMU1-LITE is designed to fit entirely inside a standard CP test station and can be installed in about 20 minutes
• The RMU1-LITE has been designed to provide essential, fit-for-purpose functionality, enabling pipeline operators to affordably achieve high volume deployment and generate operational data that provides new insights into system dynamics
• RMU1-LITE provides an instant-off potential measurement, generating additional data to meet regulatory requirements and better manage pipeline assets
• RMU1-LITE offers the unique capability to obtain separate pipe-to-soil potential measurements from two connected reference cells. This allows technicians to compare the results and validate whether the reference cells are functioning properly
• Available with cellular or satellite communication capability, the RMU1-LITE can transmit data from virtually any location. This helps improve the quality and frequency of data collection, while reducing the need for workers to undertake long, potentially dangerous trips, to remote sites
• Lightning, surge and overvoltage protection and broad operating temperature range (-40° to +60°C [-40° to +140°F])
• User-replaceable standard AA battery provides up to 10 years of monitoring and data transmission and maximizes lightning isolation.

Environmental

• Operating Temperature: -40° to +60° C (-40° to +140° F)
• Storage Temperature: -45° to +80° C (-49° to +176° F)
• Maximum Altitude: 5000 meters above sea level
• Humidity: 0 to 100% RH non-condensing

Physical + Power

• Weight: 220 grams (0.5 lbs)
• Size: 80mm x 80mm x 110mm (3.15”x3.15”x4.33”)
• Battery Life: L91 Lithium AA batteries — Typically 10 years based on readings every 14 days and two exception transmissions per month.
