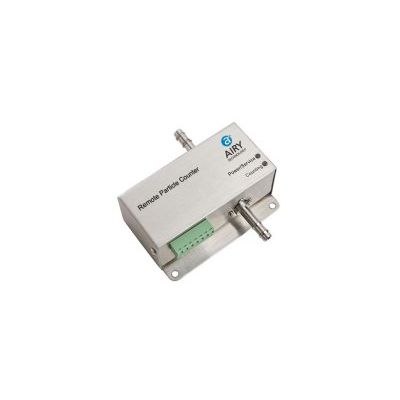

Airy Technology - Model P235 -Remote Particle Counter
The Airy Technology P235 remote particle counter measures 0.5 µm and 5.0 µm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus™ RTU or Modbus™ ASCII. The P235 is the smallest remote particle counter in the market and has easy mounting options. The Airy Technology P235 complies with ISO 21501-4 and includes a 2 year limited warranty. The P235 is the smallest remote particle counter in the market and has easy mounting options. The Airy Technology P235 complies with ISO 21501-4 and includes a 2 year limited warranty.
Most popular related searches
remote particle counter
particle counter
isokinetic sampling probe
sampling probe
building management system
stainless steel enclosure
isokinetic sampling
sampling tube
mercury calibration
flow control
- Measures 0.5 µm and 5.0 µm
- 0.1 CFM (2.83 LPM) flow rate
- Measures 2 channels of simultaneous data
- Long life laser diode
- Modbus™ RTU or Modbus™ ASCII outputs
- Concentration limit of 2,000,000 per ft³
- Complies with ISO 21501-4 and JIS B9921 standards
- Lightweight stainless steel enclosure
- Easy to clean and wipe down
- 2 year limited warranty
- Channel Sizes : 0.5 µm and 5.0 µm
- Counting Efficiency : 50% at 0.5 μm; 100% for particles > 0.75 μm (per JIS)
- Concentration Limit : 2,000,000 particles / ft3 at 5% coincidence loss
- Light Source : Long Life Laser Diode
- Zero Count Level : Size Resolution : Flow Rate : 0.1 CFM (2.83 LPM)
- Flow Control : Critical orifice
- Vacuum Requirements : External vacuum >15” (38.1 cm) of Hg
- Calibration : NIST traceable
- Sample Probe/Tubing : Isokinetic sampling probe
- Communication Interface : Modbus™ RTU or Modbus™ ASCII outputs (specified upon order)
- Power : 9-30 VDC
- Dimensions (L x W x H) : 1.8” x 3.7“ x 1.5” (4.5 cm x 9.3 cm x 3.8 cm) does not include probes
- Weight : 0.62 lb (0.28 kg)
- Standards : ISO 21501-4 and JIS B9921
- Warranty : 2 year limited warranty
- Operating Conditions : 5° to 35°C 20% to 95%RH non-condensing
- Storage Conditions : -20° to 50°C Up to 98%RH non-condensing
- Included Accessories : User manual
- Optional Accessories : Purge filter, data cable, vacuum and sample tubing, Isokinetic sampling probe
