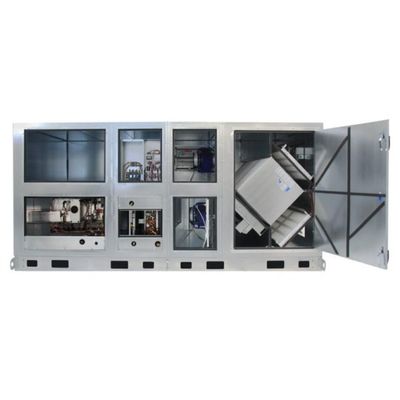

RenewAire - Model DN 2IN Standard -Dedicated Outdoor Air Systems (DOAS)

FromRenewAire LLC

SHARE

Application Type:Indoor. Ventilation Type:Static plate, heat and humidity transfer. Typical Airflow Range:375-1,650 CFM. AHRI 1060 Certified Core:One L62-G5, One L125-G5. OA Filter(s):Total Qty. 2, MERV 8: 16" x 20" x 2". RA Filter(s):Total Qty. 2, MERV 8: 16" x 20" x 2". Dimensions:126" L x 60 3/4" W x 71 7/8" H. Weight:1300 - 2200 lbs. (varies by option).

Most popular related searches

ambient air system

vibration isolation

water regulations

Electrical Service

[13] 208V / 1 Phase / 60 Hz
[33] 208V / 3 Phase / 60 Hz
[15] 230V / 1 Phase / 60 Hz
[35] 230V / 3 Phase / 60 Hz
[34] 460V / 3 Phase / 60 Hz
[38] 575V / 3 Phase / 60 Hz

Fan Control

[E] ECM
[V] VFD

SA Fan Location

[B] Before Coil, Blow-thru (Standard)
[A] After Coil, Draw-thru

Vibration Isolation

[N] Neoprene Isolators (Standard)
[S] Spring Isolators

Controls
BACnet Factory Activation Available
Unit Fusing

[N] Non-fused (Standard)
[F] Fused

GFCI Convenience Outlet
Available
Recirculation Damper
Available
VRF Modification
Available
Cooling

[-] None
[C] Chilled Water Coil
[D] Direct Expansion Coil
[H] Heat Pump Coil
[P] Heat Pump & Hot Gas Reheat Coils
[R] Direct Expansion & Hot Gas Reheat Coils

Heating

[-] None
[E] Electric Heater
[G] Gas Heat Module
[P] Heat Pump Coil
[S] Steam Coil
[H] Hot Water Coil

Insulation

[1] 1" Insulation (Standard)
[2] 2" Insulation

Paint

2500 Hour Salt Spray
None (Standard)

Drain Overflow Switch

Available
