LUMINOR - Model BLACKCOMB-HO 6.0 -Residential UV Water Disinfection
For the ultimate in higher flow rates, then LUMINOR`s BLACKCOMB-HO6.0 line of `Residential Crossover` UV systems should be your choice. Installed in a large residence or in a light commercial application, continuous UV monitoring is provided by the inclusion of a true 254nm discrete UV monitor. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A colour user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up.

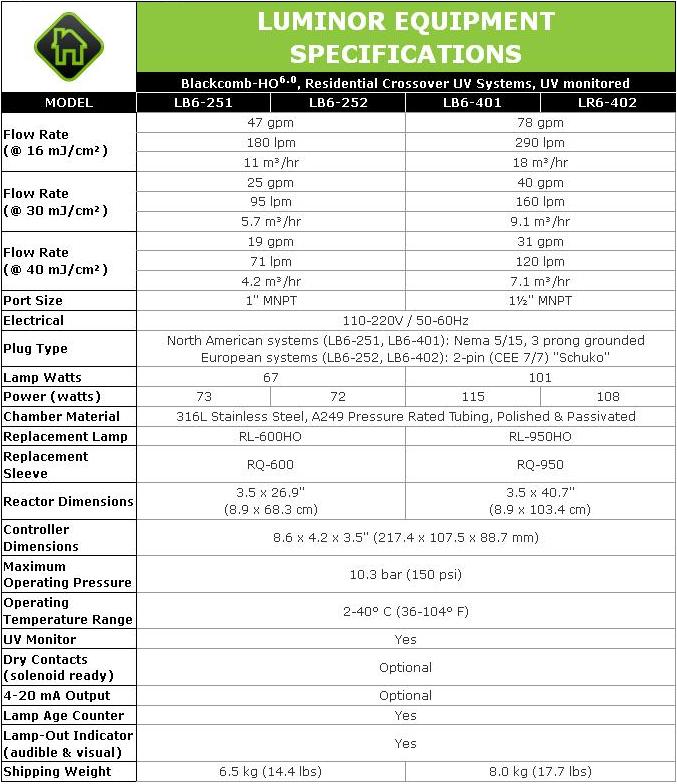

The system even incorporates QR codes to access lamp change information and videos via web access. The controller`s universal input, constant current electronic power source is housed in a splash-proof case and comes standard with a "future-proof" expandability port for future upgrades or options. Commercial grade, axial flow 316L stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Reliable, industry proven, high quality low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour life. Flow rates of 15, 38, 53, 95 & 150 lpm (5, 10, 15, 25 & 40 gpm), in both 120V or 230V applications (same ballast, different IEC power cord), are offered in the BLACKCOMB-HO6.0 series of products.
If you are unsure of the microbiological quality of your source water or if you are looking for additional security from your municipal water source, then LUMINOR has the solution in the BLACKCOMB-HO6.0 series of “Residential Crossover” UV systems.
UV technology is proven to control microbiological (bacteria & virus) issues in water including E.coli, Cryptosporidium and Giardia lamblia.
BLACKCOMB-HO6.0 provides the ultimate in UV protection for your home with the inclusion of a true 254nm Teflon® based UV sensor that continuously monitors the performance of the UV system and displaying the output via a colour screen. In addition to UV output, diagnostics, system status, warning and even QR codes are included. With the integral expandibility port, the addition of a 4-20mA output or a solenoid valve is a simple plug-and-play option!
- True 254nm Teflon® based UV sensor continuously measures UV output and visually displays output via the controller
- Colour user interface with full diagnostics and warnings including QR codes
- “Future-proof” expandibility port for future upgrades and options
- Axial flow, 316L stainless steel reactor
- Designed & manufactured to ASME pressure vessel standards
- Flow rates stated at 95% UVT at a dose of 30mJ/cm2
- User friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed)
- True gland seal retaining nut with positive stop
- Reliable, industry proven low pressure high-output (LP-HO) coated UV lamps with ceramic bases for durability and a 10,000 hour life
- Universal input, constant current electronic controller (one controller for all systems) in a splash-proof case
