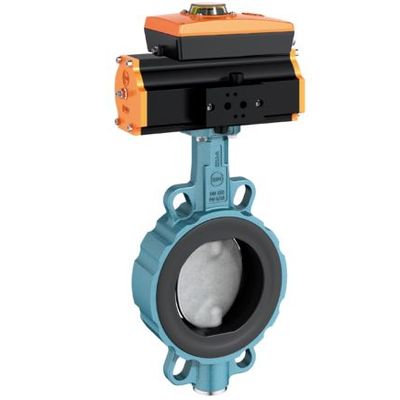

Ebro-ArmaturenModel Z 011-A -Resilient Seated Valve

SHARE

Thanks to their design and material diversity, centrally mounted, resilient seated shut-off and control valves are almost universally usable. Whether the medium is water, powder or gas - with a broad range of materials, we can offer you the optimal solution for your application.

Most popular related searches
  • Nominal diameter: DN 20 - DN 1000 (DN 20 only PN10/16)
  • Face-to-face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1
  • Flange accommodation: EN 1092 PN 6/10/16, ASME Class 150 , AS 4087 PN 16
  • Flange Surface Design: EN 1092 Form A /B, ASME RF, FF
  • Top flange: EN ISO 5211
  • Marking: EN 19
  • Tightness check: EN 12266 (Leakage rate A), ISO 5208, Category 3
  • Working standard: EN 593
  • Temperature range: -40 °C to + 200 °C (depending on pressure, medium and material)
  • Max. Operating pressure: max. 16 bar
