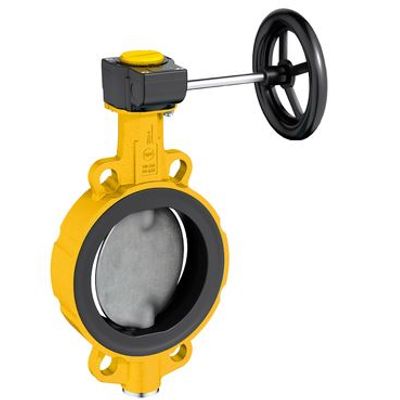

Ebro-Armaturen - Model Z 011-A -Resilient Seated Valve for Gas Applications
A resilient seated valve designed for gas applications.Certified by DVGW .
Most popular related searches
- Nominal diameter: DN 20 - DN 1000 (DN 20 only PN10/16)
- Face-to-face:
- EN 558 Series 20
- ISO 5752 Series 20
- API 609 Table 1
- Flange accommodation:
- EN 1092 PN 6/10/16
- ASME Class 150
- AS 4087 PN 16
- Flange Surface Design: EN 1092 Form A /B, ASME RF, FF
- Top flange: EN ISO 5211
- Marking: EN 19
- Tightness check: EN 12266 (Leakage rate A), ISO 5208, Category 3
- Working standard: EN 593
- Temperature range: -20 °C to + 60 °C (depending on pressure, medium and material)
- Max. Operating pressure: max. 16 bar
