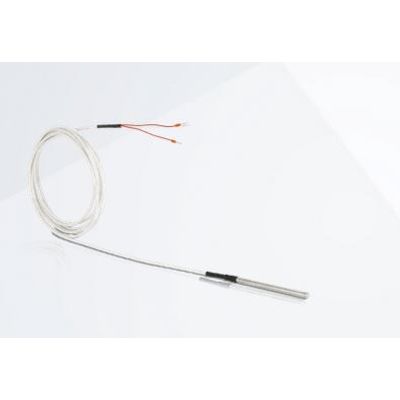

OPTITEMP - Model TRA-W10 -Resistance (RTD) Cable Sensors

Resistance (RTD) cable sensor for industrial applications with low pressure and flow ranges

• Temperature measurement of liquids and gases in pipes and tanks
• Available with flying wires, single and double versions
• Sheath material: Stainless steel (1.4404 / 316L)
• Tolerance class A according to IEC 60751 as standard
• Available with PVC, silicone or PTFE insulated connecting cable
• Standard or customised lengths
• Available with connection head (IP54)
• With optional temperature transmitter

• Applications with low pressures and low flow velocities
• Temperature measurement in pipes and tanks, e.g. in heating and ventilation (HVAC) applications with supply and return lines
• Suitable for a wide range of applications in almost all industries
  • Plant engineering
  • Machinery and apparatus / OEM

• Depending on selected device configuration
• General information
• Product type Temperature sensor
• Product family name OPTITEMP
• Product positioning For industrial applications with low pressure and flow ranges
• Product variants Standard: OPTITEMP TRA-W10
• Measurement principles Resistance (RTD)
• Measurement variables Temperature
• Measured media Gases, Liquids, Solids
• Assembly with thermowell No
• Sensor mounting Plug-in
• Measuring insert replaceable No
• Measuring insert type Non-replaceable RTD
• RTD element type 1 x Pt100, 1 x Pt1000, 2 x Pt100
• RTD configuration 2-wire, 3-wire, 4-wire
• Tolerance class (according to DIN EN 60751) A
• Temperature sensor connection type option Flying wires, PTFE insulated connecting cable, PVC insulated connecting cable, Silicone insulated connecting cable
• Sheath diameters Ø6 mm / 0.23"
• Mounting point Pipe, Tank
• Measuring point Pipe, Tank
• Materials
• Wetted parts Austenitic stainless steel (1.4404/316L)

Operating conditions

• Process temperature -50…200°C/ -58…390°F

Process connections

• Thread connections Male: G½
• Compression fittings Male:
• G1/8, G1/4, G1/2
• 1/2 NPT
