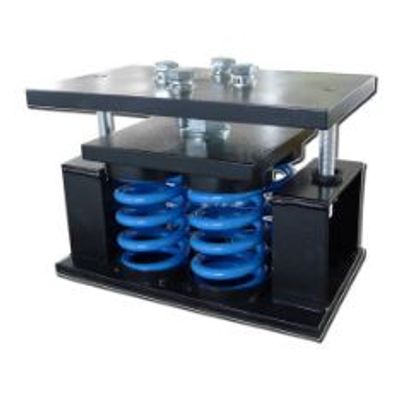

Huaqiao - Model TFL Series - 25/50 mm -Restrained Spring Mounts
TFL series restrained spring mounts is limit type snock absorber with vertical spacing and lateral restraint, makes the operation of the restrained spring mounts height and installation height completely consistent. ln the event of a load carrier, play the role of the safety lock.
Most popular related searches
- 6 mm at the bottom of the rubber damping pad, can prevent transmission noise and vibration.
- Restrained Spring Mounts can adjust the height by bolt, the device running more stable and secure.
- All spring have additional travel to maximum load to 50% of the rated load. The safety factor of the restrained spring mounts is higher.
- Please according to the actual load of equipment, choose the right model of restrained spring mounts. Restrained spring mounts will use different color to distinguish according to the load size.
- All restrained spring mounts maximum static displacement is 1.5 times of rated static displacement.
- All the diameter of the spring is greater than 80% of the height of compression spring.
