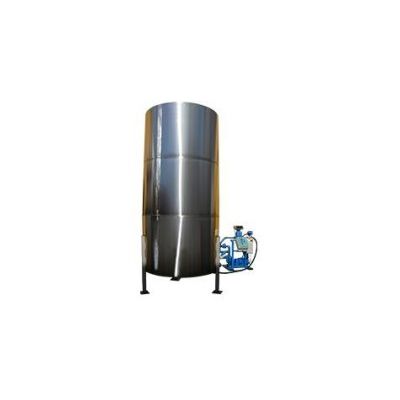

MEI - Retail Bulk Chemical System for Liquids Not Compatible with Iron
Dispensing System: 2” x 2” stainless steel self-priming centrifugal pump with a 5 hp, 3 phase, 3600 TEFC electric motor (Optional single phase). Optional: NTEP certified, weights and measures approved stainless steel 682 TCS meter with a 5-wheel re-settable head with totalizer and ¾ stainless steel air eliminator. Optional: Pump and meter are mounted on a tubular steel stand. This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.
Most popular related searches
self-priming centrifugal pump
ball valve
conservation vent
centrifugal pumping
centrifugal pump
stainless steel centrifugal pump
self-priming pump
stainless steel pump
centrifuge
air pump
- 1,600-12,000 gallon (6,100 is standard)
- Constructed of 304 back welded stainless steel with #4 polished finish
- 304 stainless steel legs
- 16” stainless steel manway
- Two 2” female threaded fittings on the top
- Two 2” female threaded openings in the sidewell
- Two in-tank eductors 180 degrees apart
- One 2” male threaded opening at the bottom of the tank
- Standard 6,100 Gallon Tank Dimensions: 96” diameter x 226” overall height
- 1 lb/1 oz conservation vent with vent baffle
- Stainless steel locking ball valves
- Bottom fill adapter to simplify tank filling
- All cross linked polyethylene 2” suction and recirculation hose
- 1” x 12 ft delivery hose and nozzle valve
